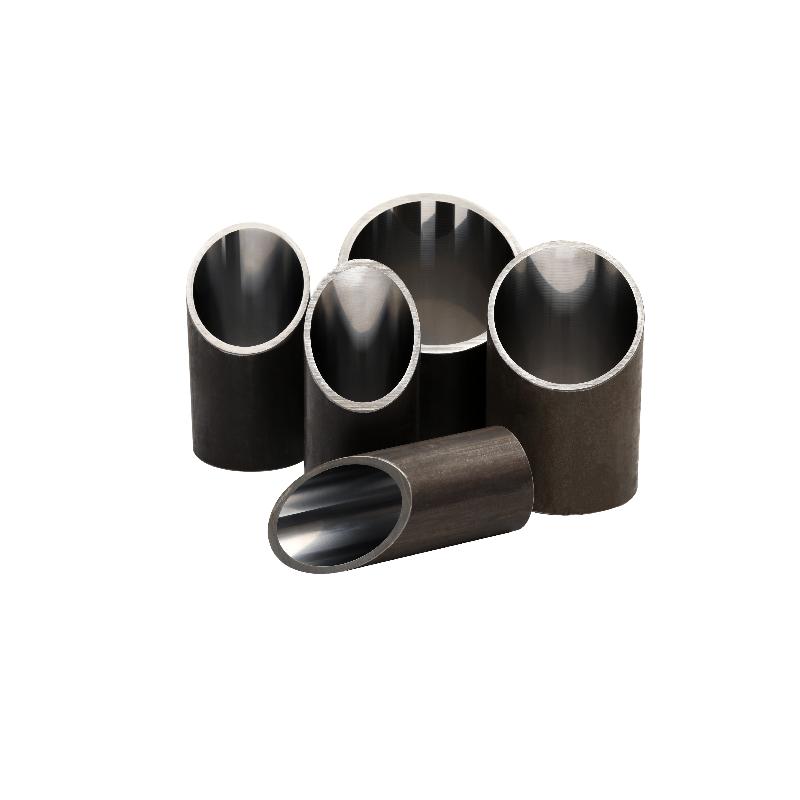

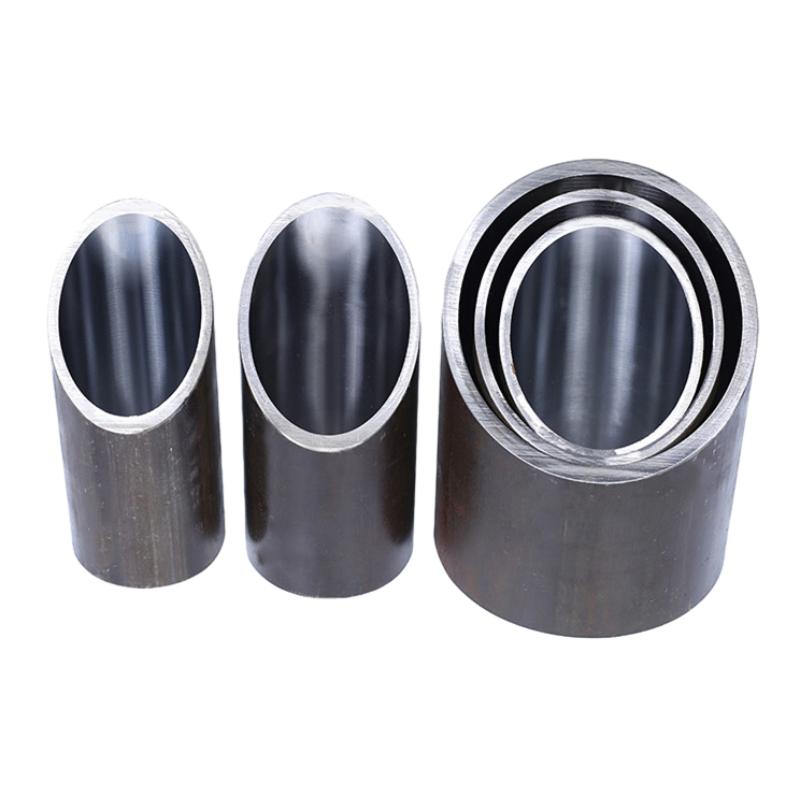

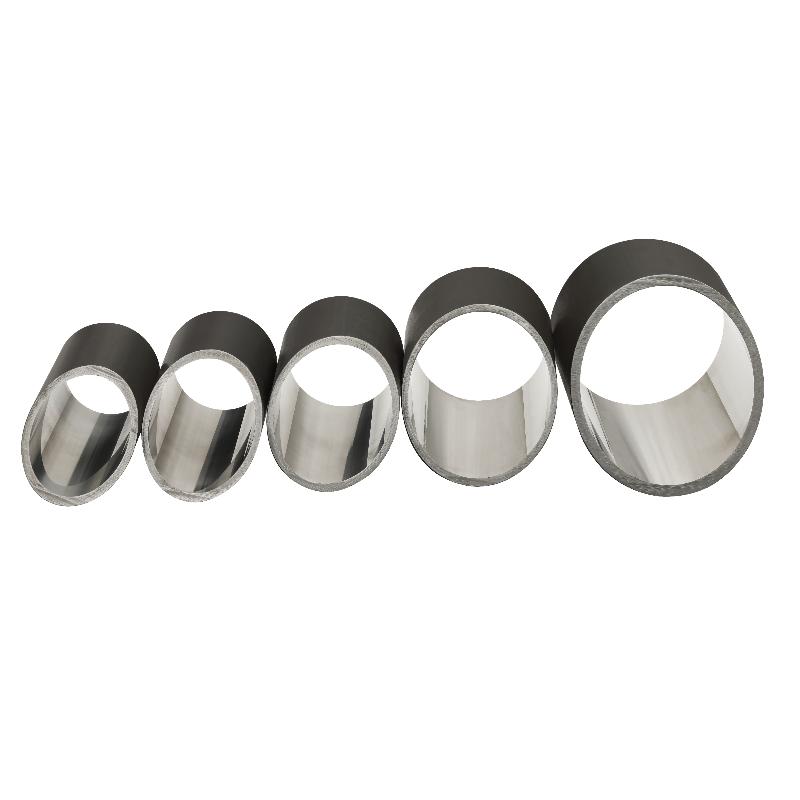

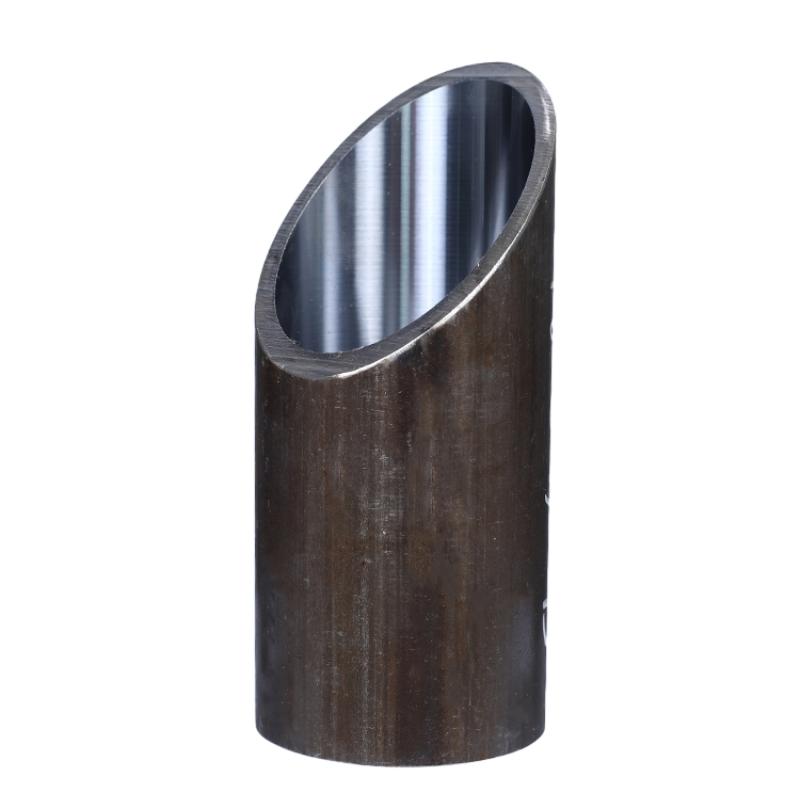

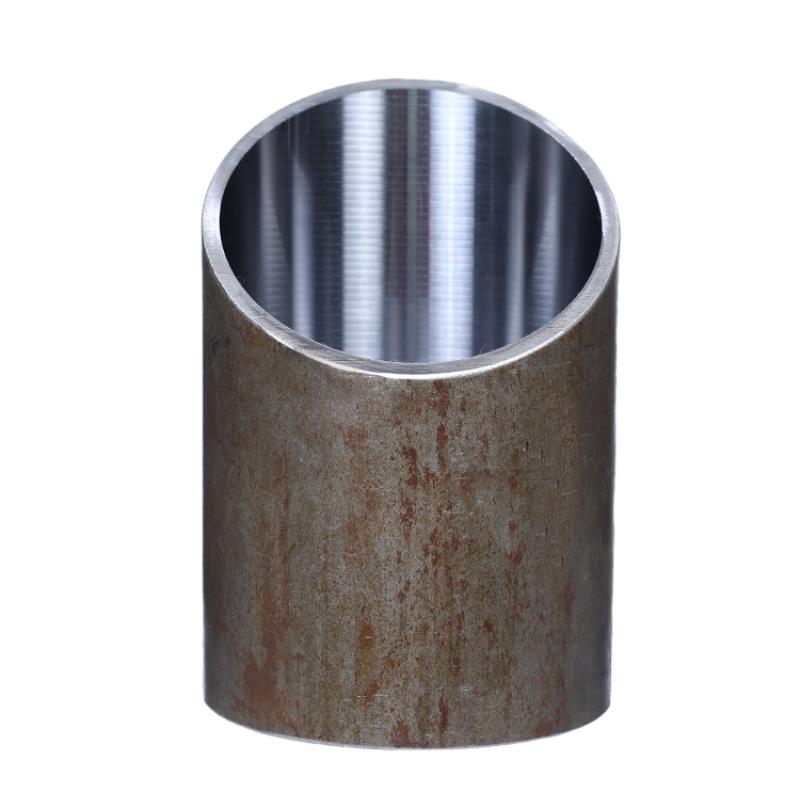

Hydraulic Cylinder Seamless Steel Tube

Name: Hydraulic Cylinder Seamless Steel Tube
Brand: CBIES Precision Seamless Steel Welded Tube Manufacturer
Availability: InStock
Rating: 4.5 (89 reviews)

Cylinders in industrial and mechanical fields are widely used, typically found in engineering machinery, automotive industry, aerospace, and various automation systems. Hydraulic cylinders provide high torque and precise control, while also being adaptable to a variety of environmental and operating conditions.

Download As PDF

Contact Now

Specification
Our advantage

Product Features

These hydraulic cylinders are powerful and reliable actuators that play a critical role in modern engineering, serving as a dependable source of power for the operation of a wide array of mechanical equipment.

Parameter

Standard/size/precise of hydraulic & pneumatic cylinder

Processing Methods	Cylinder ID(mm)	Length(m)	Straightness (mm/m)	ID Tolerance	Tolerance on WT	Roughness (μm)
Cold drawn	40-320	12M	0.2-0.5	/	±5%	0.8-1.6
Cold rolling	30-100	12M	0.2-0.5	/	±5%	0.8-1.2
Cold drawn-honed	40-500	8M	0.2-0.3	H8-H9	±5%	0.2-0.8
Cold drawn-roll	40-400	7M	0.2-0.3	H8-H9	±5%	≤0.4
Deep hole boring-honed	320-400	8M	0.2-0.3	H7-H9	±8%	≤0.8
Deep hole boring-roll	320-400	7M	0.2-0.3	H8-H9	±8%	≤0.4

Mechanical property

Grade	Cold finished（Hard）（BK）		Cold drawn and stress relieved （BK+S）			Hardness HB
Parameters	T.S Rm N/mm2	Elongation A%	T.S Rm N/mm2	Y.S ReH N/mm2	Elongation A5%	Hardness HB
20#(A106)	≧550	≧8	≧520	≧470	≧12	175
45#(CK45)	≧650	≧5	≧600	≧520	≧12	207
16Mn(ST52,E355)	≧640	≧5	≧600	≧520	≧15	190
25Mn	≧640	≧5	≧600	≧510	≧15	195
27SiMn	≧840	≧5	≧800	≧720	≧10	230

ID Tolerances

ID Min.

Tolerance on OD（um）

H10

﹢21

﹢33

﹢52

﹢84

30-50

+25

+39

+62

+100

50-80

+30

+46

+74

+120

80-120

+35

+54

+87

+140

120-180

+40

+63

+100

+160

180-250

+46

+72

+115

+185

250-315

+52

+81

+140

+210

315-400

+57

+89

+170

+230

1.Selecting high-quality carbon steel as the raw material, which boasts favorable mechanical properties, including strength and toughness and demonstrates stable performance during bending, punching and other processing procedures.

2.CBIES uses advanced high-frequency welding technology to ensure the consistent quality of weld joints, effectively minimizing welding defects. This approach enhances the strength and fatigue life of welded areas, thereby guaranteeing the safety of the product during usage.

3.During the welding process, strict control is exerted over welding parameters such as current, voltage and speed to ensure the integrity of the weld quality. Additionally, post-weld treatments are implemented, including online cleaning of the weld seam and real-time inspection for flaws, to confirm there is on defect such as cracks, incomplete penetration and slag inclusion in the welded areas.
