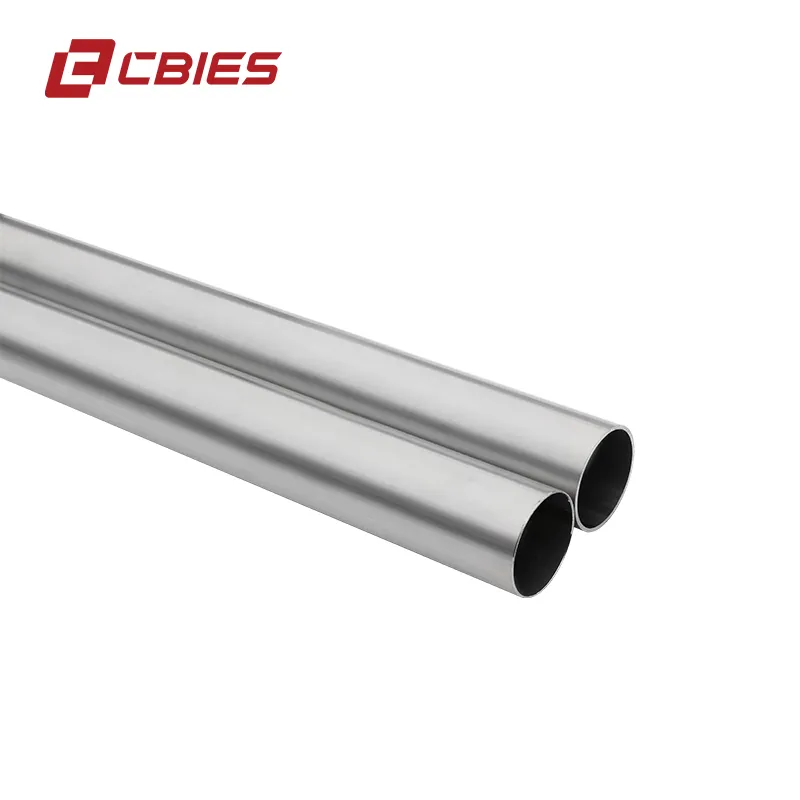

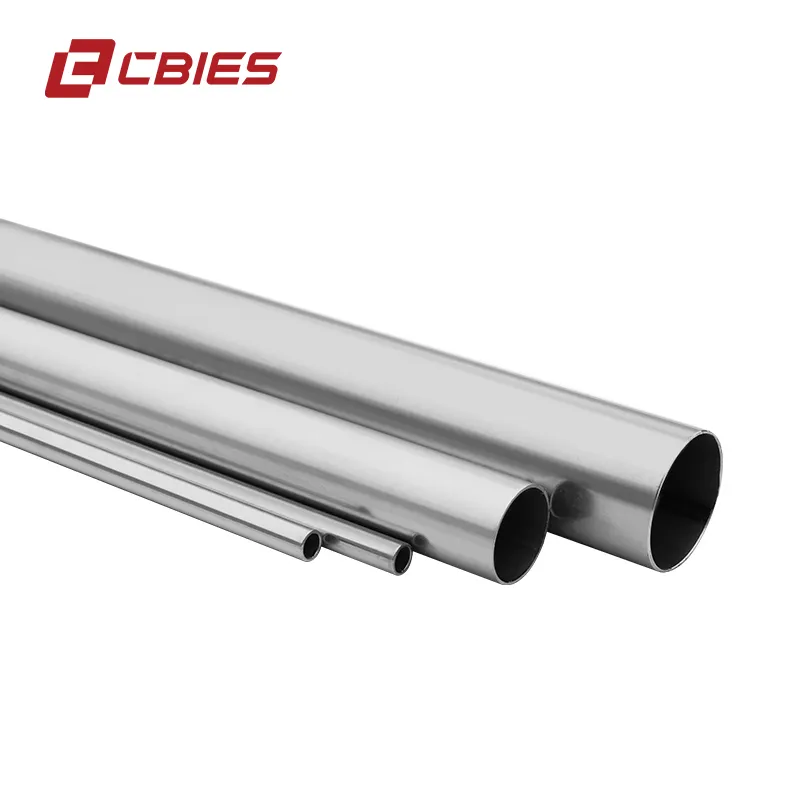

Chassis Frame Tube

Name: Chassis Frame Tube - Durable & Lightweight Solutions for Automotive and Industrial Applications
Brand: CBIES Precision Seamless Steel Welded Tube Manufacturer
Availability: InStock
Rating: 4.5 (89 reviews)

Download As PDF

Contact Now

Specification
Our advantage

Application areas

The application fields of automobile chassis tubes are very wide, mainly including the following aspects:

1. Automobile chassis structure: As an important part of the automobile chassis, chassis tubes are used to build frames and other supporting structures to help vehicles maintain stability and load-bearing capacity.

2. Suspension system: Chassis tubes are often used in suspension systems, including control arms, crossbeams, support frames, etc., to support the body, absorb shock, and improve vehicle handling.

3. Exhaust system: Chassis tubes can also be used in exhaust systems as part of the exhaust tube to help guide the exhaust gas discharged by the engine and reduce noise and pollution.

4. Hydraulic and pneumatic systems: In the hydraulic braking, steering, and suspension systems of vehicles, chassis tubes can be used to transmit hydraulic oil or gas to ensure the normal operation of the system.

5. Electric vehicles: In electric vehicles, chassis tubes are sometimes used as protective devices for cables to prevent cables from being damaged during vehicle driving and ensure the stability of the power system.

6. Heavy-duty and commercial vehicles: On heavy-duty and commercial vehicles such as trucks, buses and engineering vehicles, chassis tubes are used to build stronger and more durable chassis structures to accommodate higher loads and more complex use environments.

These chassis tubes are usually made of high-strength steel materials to ensure their reliability in withstanding high stress, corrosion resistance and long-term use.

CBIES' Chassis Tube is ideal for lightweight chassis designs. With leading material research and development, sophisticated manufacturing processes, and comprehensive quality control, we help vehicle manufacturers improve fuel economy, vehicle performance, and environmental benefits in the continuous pursuit of weight reduction. Through CBIES' technological innovation and production advantages, our chassis tubes can provide strong and lightweight structural support for your vehicle, helping the future development of the automotive industry.

Product Introduction

Chassis Tube is a high-strength tube specially designed for automobile chassis structures. It is used in components such as front and rear subframes, control arms, steering knuckles, and suspension connecting rods. The lightweighting of these chassis components is one of the core factors for improving vehicle performance and reducing energy consumption. Our products use advanced materials and technologies to help customers significantly reduce weight while improving vehicle handling, fuel economy, and safety performance.

Product Specifications

Item Name： Chassis Tube
Circular：38-75 mm	Wall thickness：1.0-6.0mm
Grade： SPHF590	Length：5800mm
Outside diameter (D)：±0.2mm	Thickness (T)：±0.18mm
Mass per unit length：+/-1mm	Straightness：0.5mm/M
Exact length： Meet customer requirements	Characteristic： Customized according to the quality tolerance required by customers

Product features and advantages

1. Continuous lightweight design

Chassis Tube focuses on providing lightweight solutions for chassis structures, covering various components such as front and rear subframes, control arms, steering knuckles, and suspension links. Through precise design and material optimization, each tube can significantly reduce the weight of the entire vehicle. Lightweighting not only reduces the load on the wheels, but also improves the vehicle's fuel efficiency, shortens the braking distance, and improves the vehicle's control response.

2. High strength and durability

Although lightweighting is a core goal, our products maintain exceptional strength and durability. The Chassis Tube uses high-strength steel materials to ensure sufficient tensile strength and torsion resistance while reducing weight. Particularly in highly stressed areas such as subframes and control arms, our tubes can withstand huge loads and vibrations, ensuring long-term reliability.

3. Improve dynamic performance

The direct benefit of lightweighting the chassis is the reduction of unsprung mass (mass on the wheels), which allows the vehicle to have better dynamic response and stability when cornering, accelerating, and braking at high speeds. At the same time, due to the weight reduction, the burden on the suspension system is also reduced when the vehicle is driving on rough roads, improving ride comfort.

4. Fuel economy and environmental benefits

Weight reduction has a significant improvement effect on fuel economy. For every kilogram of vehicle weight reduced, the vehicle's fuel consumption and carbon dioxide emissions will be reduced accordingly. The lightweight design of the Chassis Tube can significantly reduce vehicle energy consumption, help vehicle manufacturers meet more stringent emission regulations, and also allow consumers to enjoy more economical vehicle costs.

5. Excellent corrosion resistance and long life

Our tubes are treated with high-end anti-corrosion and can handle salt spray, moisture, and chemicals in harsh environments. They are especially suitable for chassis components that are exposed to the outdoors all year round and are easily exposed to soil and moisture. The Chassis Tube maintains structural integrity and high performance even in the most demanding conditions.
