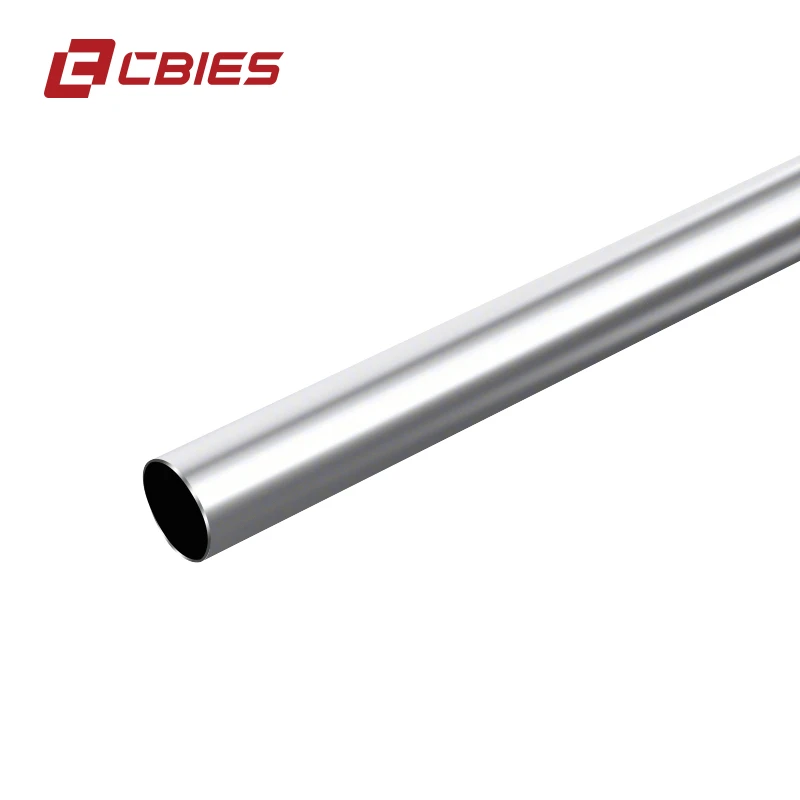

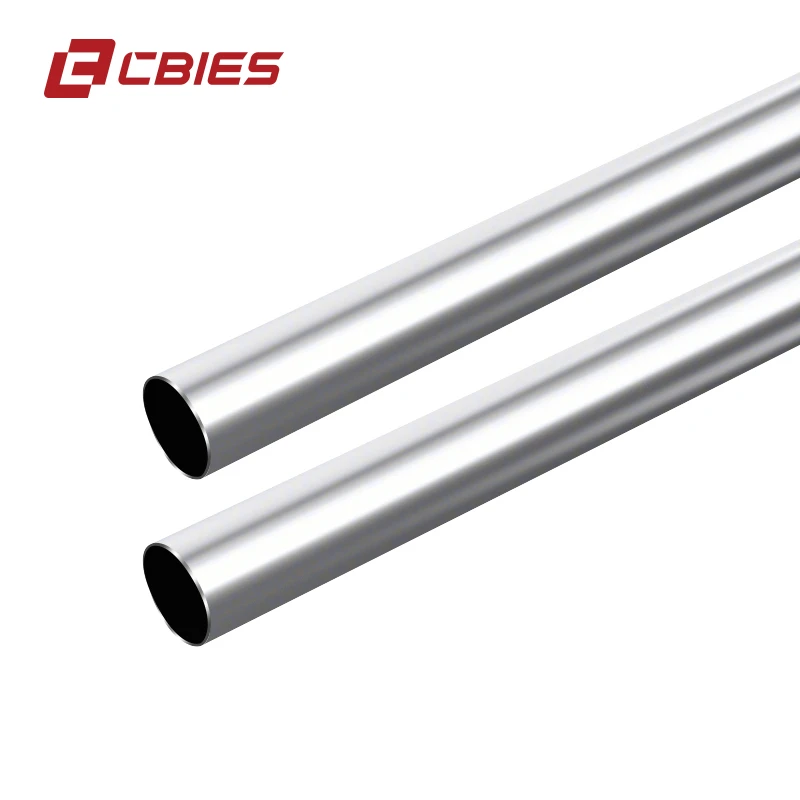

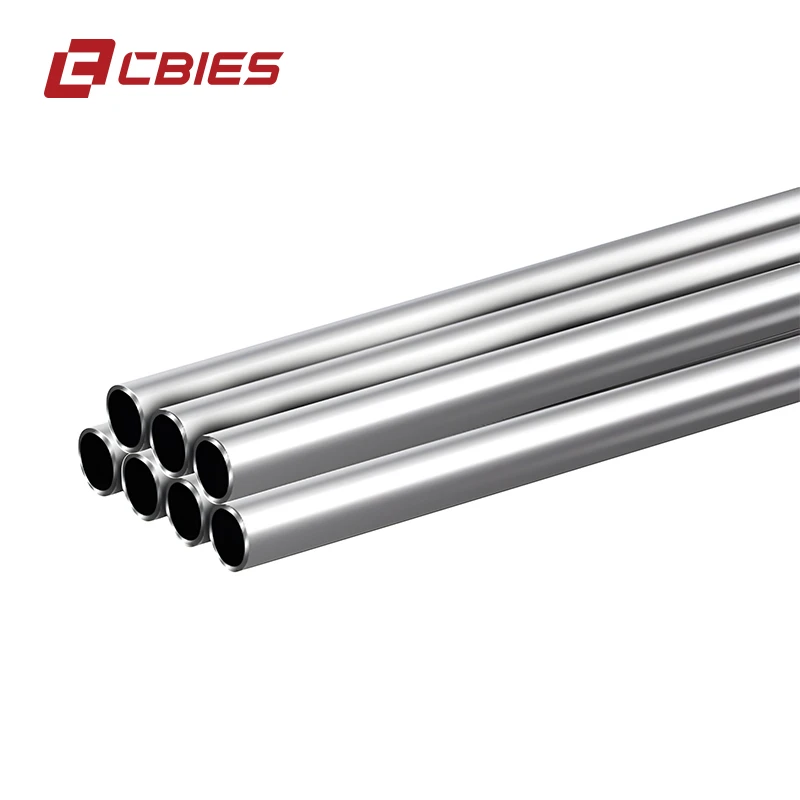

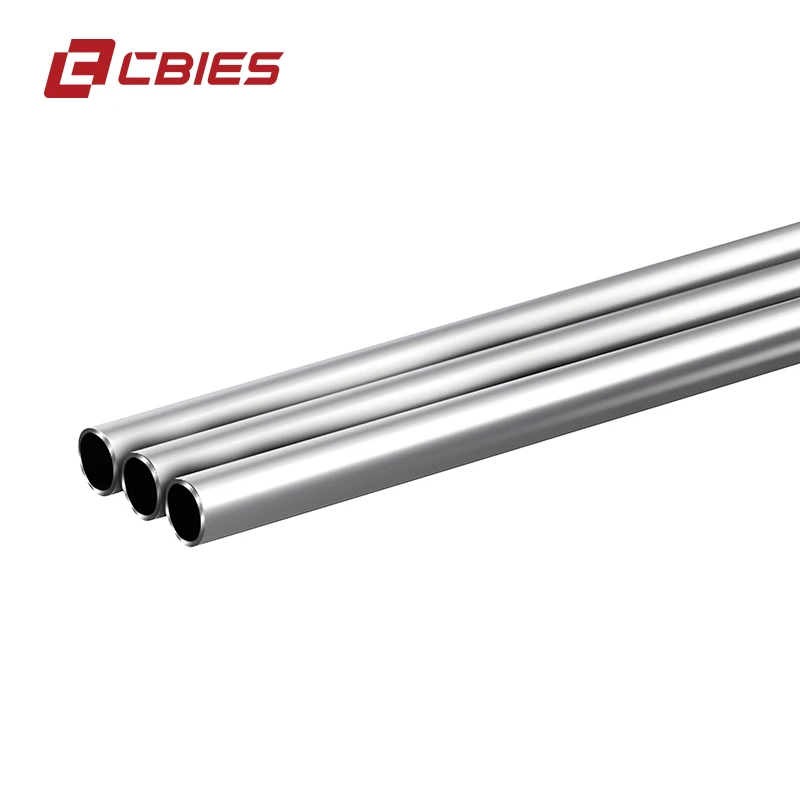

Chassis Tube For Automotive

Name: High-Quality Chassis Tubes for Automotive Applications
Brand: CBIES Precision Seamless Steel Welded Tube Manufacturer
Availability: InStock
Rating: 4.5 (89 reviews)

Download As PDF

Contact Now

Specification
Our advantage

Design And Function

1. Control arm tube:
Connects the wheel and the body, affecting the stability and handling of the vehicle. Dynamic load and vibration absorption capacity must be considered during design.

2. Steering knuckle tube:

Connected to the steering mechanism to ensure smoothness and stability during steering. Good pressure resistance and flexibility are required.

3. Suspension link tube:

Used to support and position the wheels to ensure the stability of the vehicle when driving on uneven roads. The elastic coefficient and strength should be considered during design.

4. Brake line:

Transmits brake fluid to ensure the response speed and efficiency of the brake system. It needs to have extremely high sealing and high pressure resistance.

Product Introduction

Chassis tube for automotive is mainly used in the suspension system, steering system and braking system of the vehicle. The chassis structure mainly includes front and rear subframes, control arms, steering knuckles, suspension links, etc. These tubes are usually made of high-strength steel or lightweight alloys to ensure sufficient strength and durability.

Product Specifications

Material: Carbon Steel

Grade: SPHF590

Circular: 38-75 mm

Wall thickness: 1.0-6.0mm

Length: 5800 mm

Other sizes and lengths are available upon request.

Materials And Processes

1. Material selection:
Common materials for Chassis tube for automotive include cold-rolled steel, stainless steel, aluminum alloy, etc. Among them, stainless steel is often used in the braking system due to its excellent corrosion resistance, and aluminum alloy is widely used in modern automobiles due to its lightweight characteristics.

2. Processing and manufacturing process:

Chassis tube for automotive involves multiple steps such as stamping, welding, bending, and heat treatment. Precision processing equipment and technology can ensure the dimensional accuracy and mechanical properties of the tube.

Testing And Certification

1. Pressure test: ensure that the chassis tube for automotive will not leak under high pressure.

2. Vibration test: simulate the vibration environment when the vehicle is driving and test the durability of the tube.

3. Temperature cycle test: evaluate the performance stability of the material under extreme temperature changes.

4. Corrosion resistance test: ensure the durability of the tube in harsh environments such as salt spray and acid rain.

Installation And Maintenance

1. Installation accuracy: the correct installation angle and position are crucial to performance.

2. Regular inspection: including the wear of the tube, the tightness of the fasteners, and whether there is leakage.

3. Timely replacement: according to the vehicle usage and manufacturer's recommendations, replace aging or damaged tubes regularly to ensure driving safety.

Chassis tube for automotive is an important guarantee for vehicle performance. Its design, manufacturing and maintenance need to follow strict industry standards and specifications to ensure the safety, stability and efficient operation of the vehicle.

Choosing CBIES's chassis tube for automotive products means you have chosen excellent performance, reliable quality and worry-free driving experience. We are committed to becoming your trusted long-term partner to jointly promote the development of the automotive industry. Contact us now to start your journey of excellence!
