Automotive Lower Back Frame Tube

article_details

Download As PDF
article_email

Contact Now
  • Specification
  • Our advantage

Product Selling Points:

arrow_bom
  1. 1. Superior overall performance:
  2. The automotive lower back frame tube produced by CBIES not only excels in strength and durability, but also significantly improves the corrosion resistance of the product through advanced surface treatment technology, and is suitable for various complex and demanding use environments.
  3.
  4. 2. Product quality:
  5. After many trials, CBIES has mastered the manufacturing process of high-strength welded tubes, and the tensile strength of the product can reach more than 1300MPa, while ensuring that the product roundness is within 0.2mm. Our products have good weldability, and 2/3D flattening has no obvious cracking.
  6. 3. Efficient production and stable supply:

Relying on modern production lines and strict quality control systems, CBIES can stably and efficiently carry out mass production, ensure the consistency and reliability of product quality, and provide customers with timely supply chain support.

  1. 4. Environmentally friendly production process:

CBIES focuses on sustainable development, adopts environmentally friendly processes and materials in the production process, reduces energy consumption and environmental pollution, and ensures that products meet high performance requirements while also meeting environmental standards.

With the increasing requirements of the automotive industry for fuel efficiency and emission standards, lightweight design has become an important consideration for frame tubes. CBIES minimizes the weight of the tubes without reducing strength and rigidity by optimizing the tube cross-section and material selection. Lightweight design not only helps to reduce the weight of the vehicle, but also improves the fuel economy and handling performance of the vehicle. At the same time, CBIES is a one-stop precision steel tube and tube processing solution provider. CBIES provides customized design and manufacturing services for different models and customer needs. Whether it is special size requirements or specific surface treatment requirements, we can tailor the most suitable product solutions according to the specific requirements of customers.

As a leading manufacturer of automotive lower back frame tubes, CBIES is committed to providing high-quality key components to global automakers. We will continue to rely on advanced technology, strict quality control and excellent service to help customers improve product performance and enhance market competitiveness. Choosing CBIES means choosing the guarantee of quality and reliability.

Product Introduction

arrow_bom

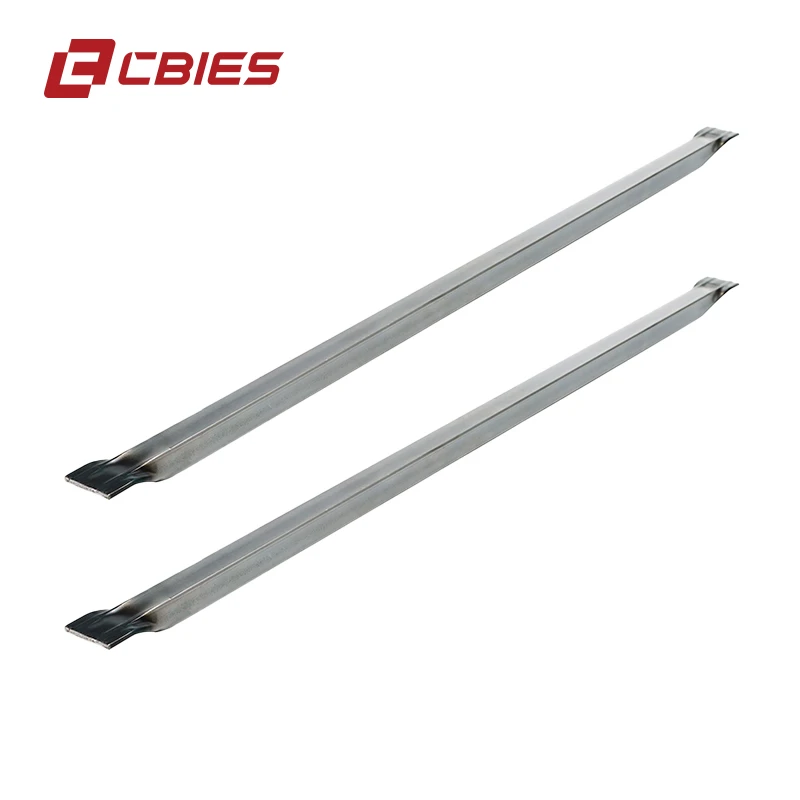

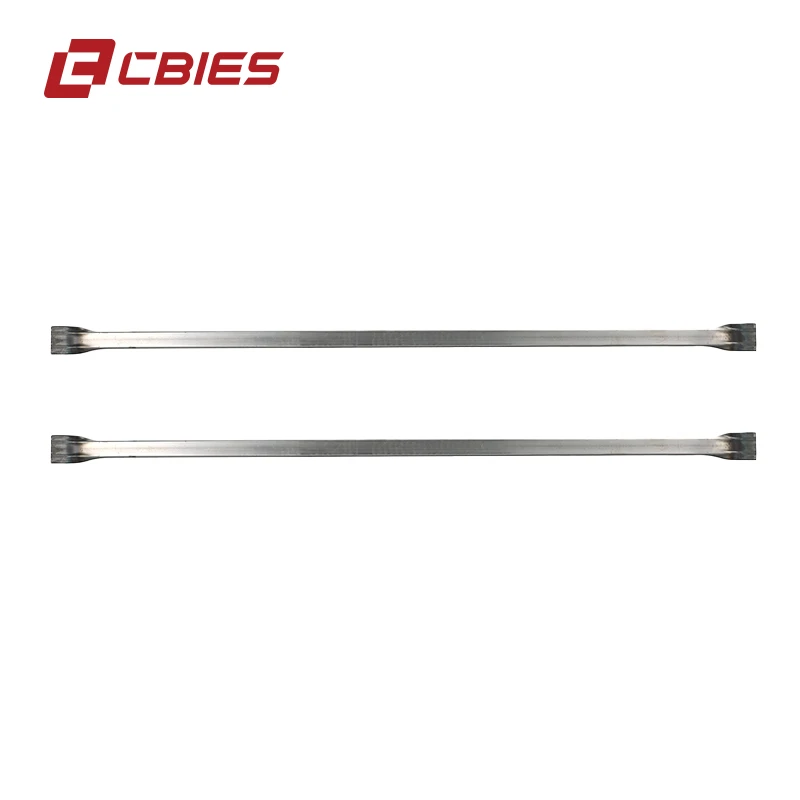

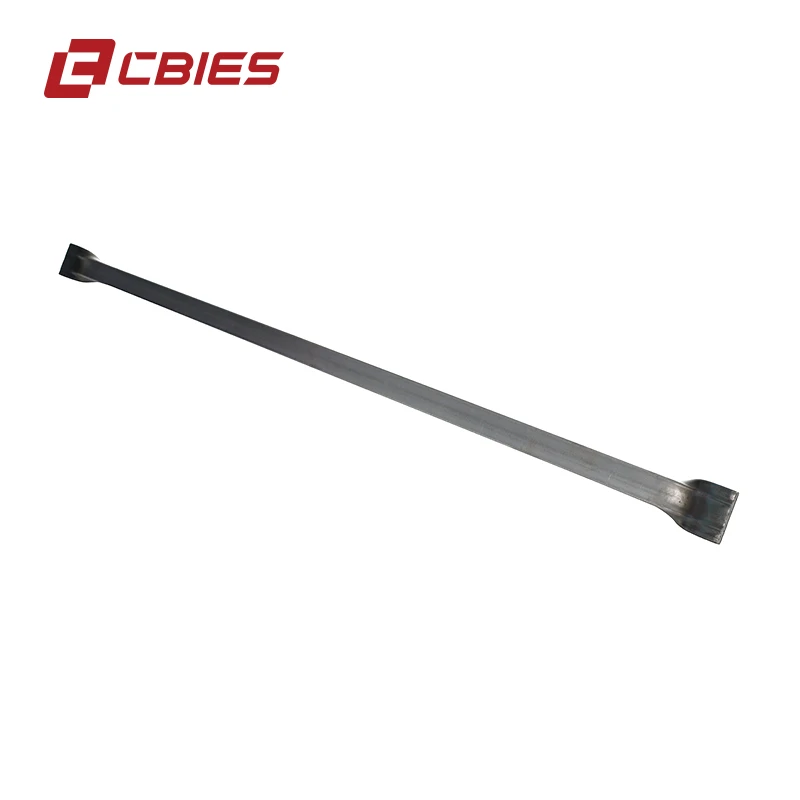

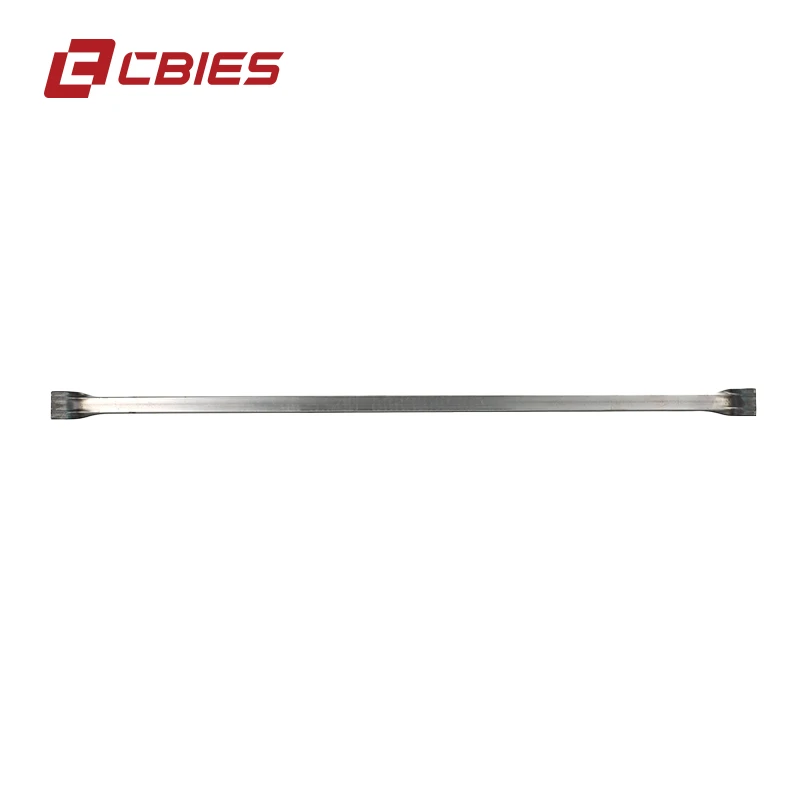

The automotive lower back frame tube is a key structural component in the chassis system of the vehicle. It is responsible for connecting and supporting the rear of the vehicle, bearing the load of the vehicle body and the impact of the road. The design and manufacture of this tube is crucial to the safety, stability and durability of the vehicle. CBIES uses advanced high-frequency welding technology and a variety of surface treatment technologies to ensure that the product has excellent mechanical properties and environmental corrosion resistance, meeting the high standards of modern automobile manufacturing.

Product Specifications

arrow_bom

Production Standard: JIS G 3445/ EN10305-2

Material Standard: Q/BQB 419

Material Grade: HC500LA

Tube Diameter: 25mm

Tube Thickness: 1.2,2.0mm

Processing Technology Stamping

Surface Treatment: Cleaning, anodizing, electroplating, electrophoresis, painting

Manner of packing: Packing in wooden case/packing in carton and wooden pallet

Remarks: Customized according to customer requirements

Application: Automotive Back Frame Tube

Product Advantages:

arrow_bom
  1. 1. High-strength structural design: The strength and rigidity of the automotive lower back frame tube directly affect the overall performance of the vehicle. CBIES uses high-frequency welding technology to ensure that the tube maintains the integrity and strength of the material during the welding process and avoids the occurrence of welding defects. Through precisely controlled process parameters, we are able to produce frame tubes with excellent strength and durability, and maintain stable structural performance under various working conditions.
  2.

2. Improved corrosion resistance: The automotive lower back frame tube is exposed to the external environment for a long time and is easily corroded by moisture, salt and other chemicals. In order to improve the durability of the product, CBIES provides a variety of surface treatment processes, including anodizing, electroplating, electrophoresis and painting. These treatments not only enhance the corrosion resistance of the tube, but also provide a durable protective layer for the product, effectively extending its service life.



  1. 3. High-precision manufacturing: CBIES strictly controls the manufacturing tolerances of the automotive lower back frame tube to ensure the dimensional accuracy and consistency of the product. The high-precision manufacturing process enables the tube to accurately match other frame components, reduce assembly errors, and improve the assembly efficiency and structural integrity of the vehicle.
