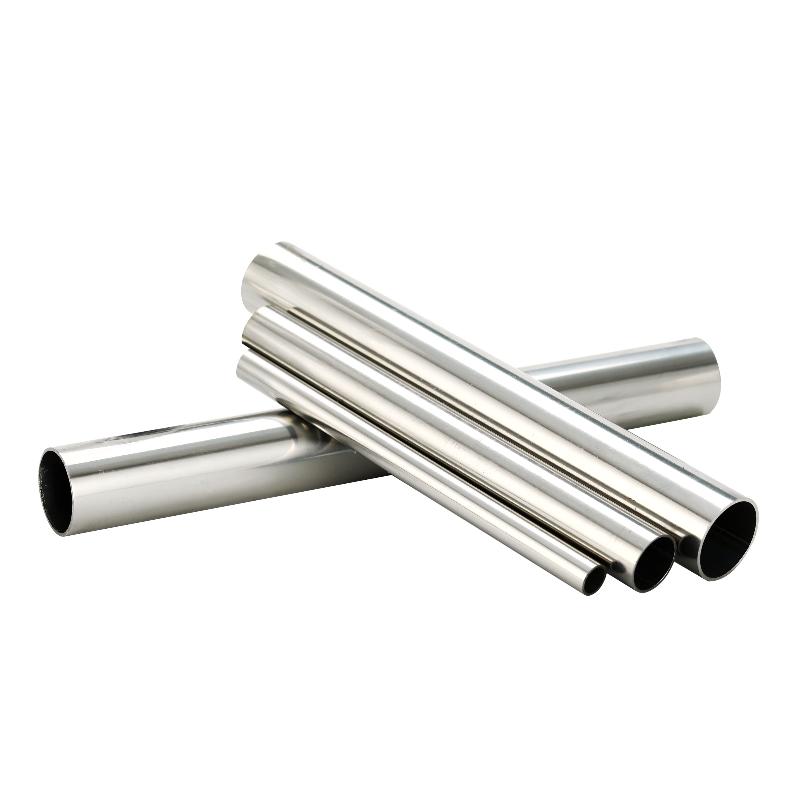

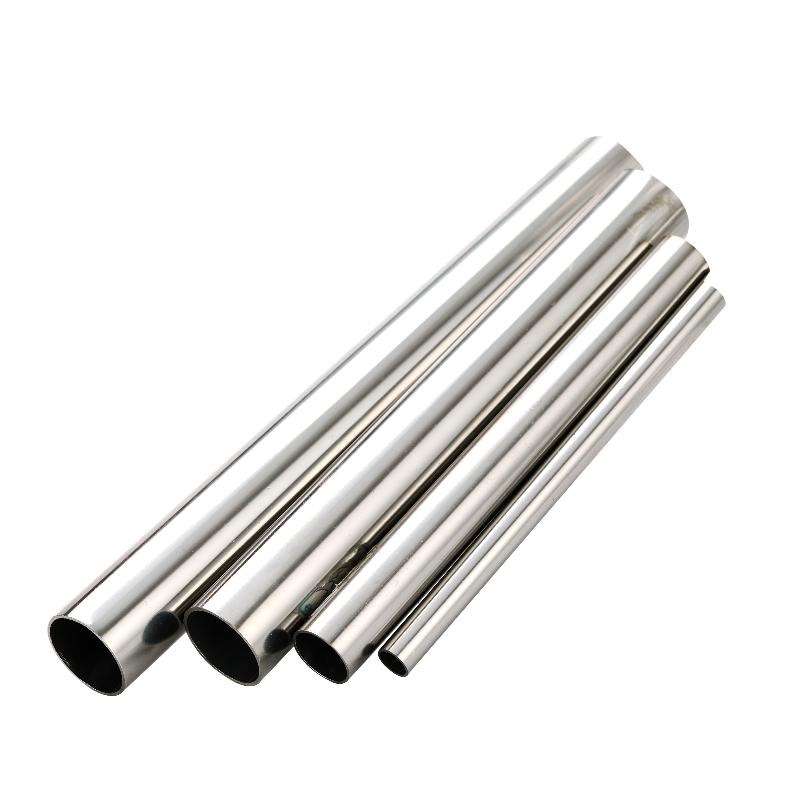

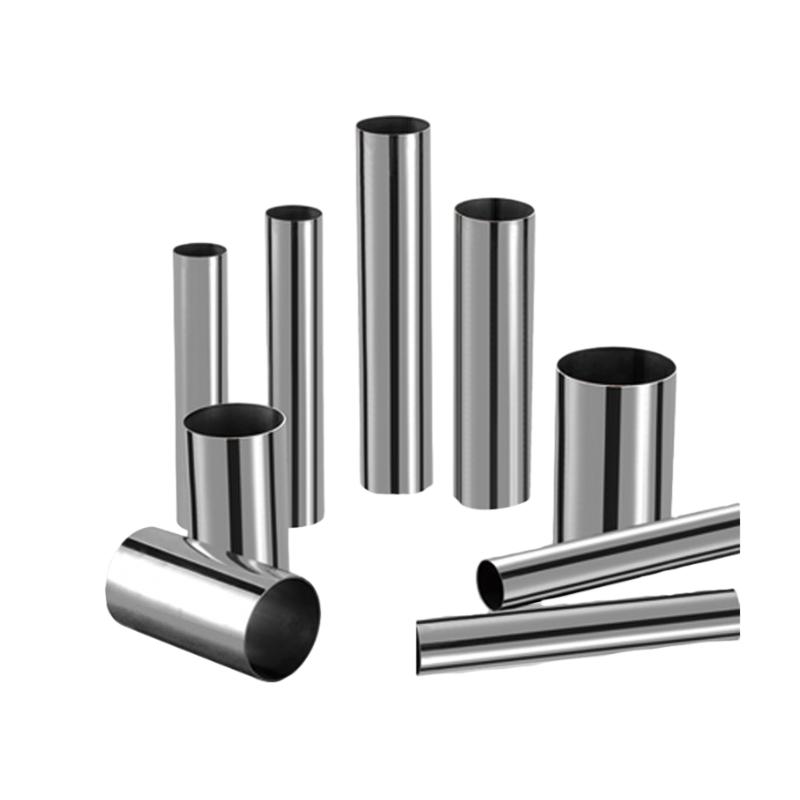

Stainless Steel Support Column of Squat Rack

Name: Stainless Steel Support Column of Squat Rack
Brand: CBIES Precision Seamless Steel Welded Tube Manufacturer
Availability: InStock
Rating: 4.5 (89 reviews)

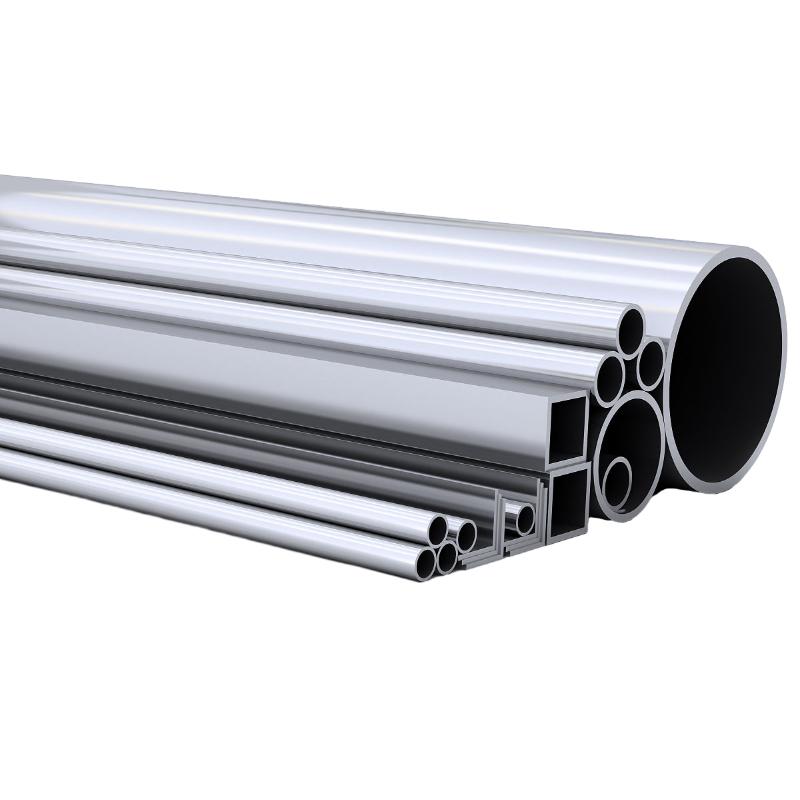

OD(mm): Round tube OD 50-80, square tube 75x75, 80x80 Thickness(mm): 3.0-5.0 Length(mm): 50-12000 Standard: GB/T 12770,ASTM A554, EN 10217-7, JIS G 3446 Grade: 0Cr18Ni9, 0Cr17Ni12Mo2, 304, 316, SUS304, SUS316, etc. For requirements out of the established specification range, we can arrange the trial production after further discussion and agreement.

Download As PDF

Contact Now

Specification
Our advantage

Product Features

The stainless steel support column in squat racks are vertical structural components typically fabricated from stainless steel material. These columns serve as the primary means of providing steadfast support, ensuring that the squat rack remains structurally stable during use.

They are crucial for maintaining rigidity and stability throughout the frame while also offering corrosion-resistant properties due to the frequent contact with liquids such as sweat in gym environments. The durability of stainless steel ensures that the squat rack can withstand heavy loads and maintain its functionality over time without degradation from moisture or rust.

Parameter

Chemical Composition (Heat Analysis) (%)

Grade	C	Si	Mn	P	S	Ni	Cr	Mo
SUS304	≤0.08	≤1.0	≤2.0	≤0.045	≤0.03	8.0-10.5	18.0-20.0	---
SUS316	≤0.08	≤1.0	≤2.0	≤0.045	≤0.03	10.0-14.0	16.0-18.0	2.0-3.0

Tolerances

Production standards and tube tolerance standards base on GB/T 12770,ASTM A554, EN 10217-7, JIS G 3446, etc. And the tolerance could be customized according to customer’s requirement.

Mechanical Properties

Grade	Status	Rpl (MPa)	Rm (MPa)	A L0=80mm(%)
SUS304	Hot Rolled	≥205	≥520	≥35
SUS316	Hot Rolled	≥205	≥520	≥35

1.Selecting high-quality carbon steel as the raw material, which boasts favorable mechanical properties, including strength and toughness and demonstrates stable performance during bending, punching and other processing procedures.

2.CBIES uses advanced high-frequency welding technology to ensure the consistent quality of weld joints, effectively minimizing welding defects. This approach enhances the strength and fatigue life of welded areas, thereby guaranteeing the safety of the product during usage.

3.During the welding process, strict control is exerted over welding parameters such as current, voltage and speed to ensure the integrity of the weld quality. Additionally, post-weld treatments are implemented, including online cleaning of the weld seam and real-time inspection for flaws, to confirm there is on defect such as cracks, incomplete penetration and slag inclusion in the welded areas.
