Headrest Shrink Tube

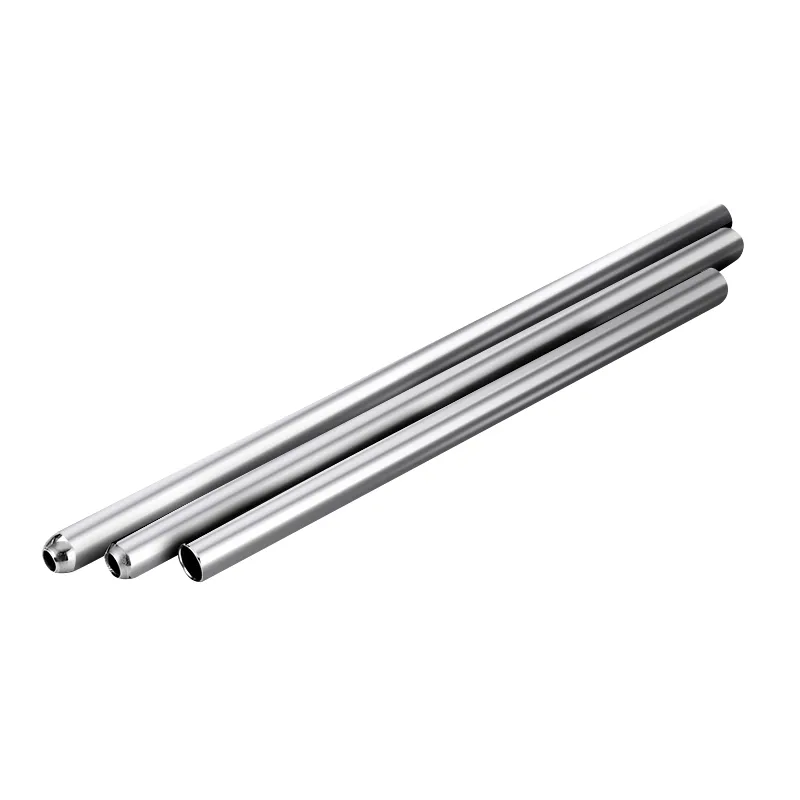

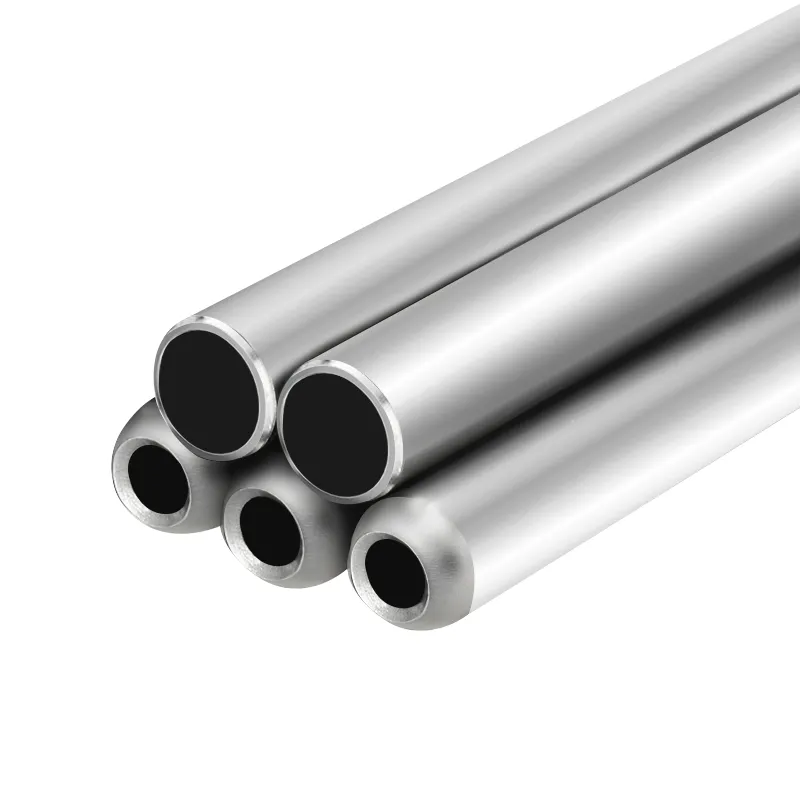

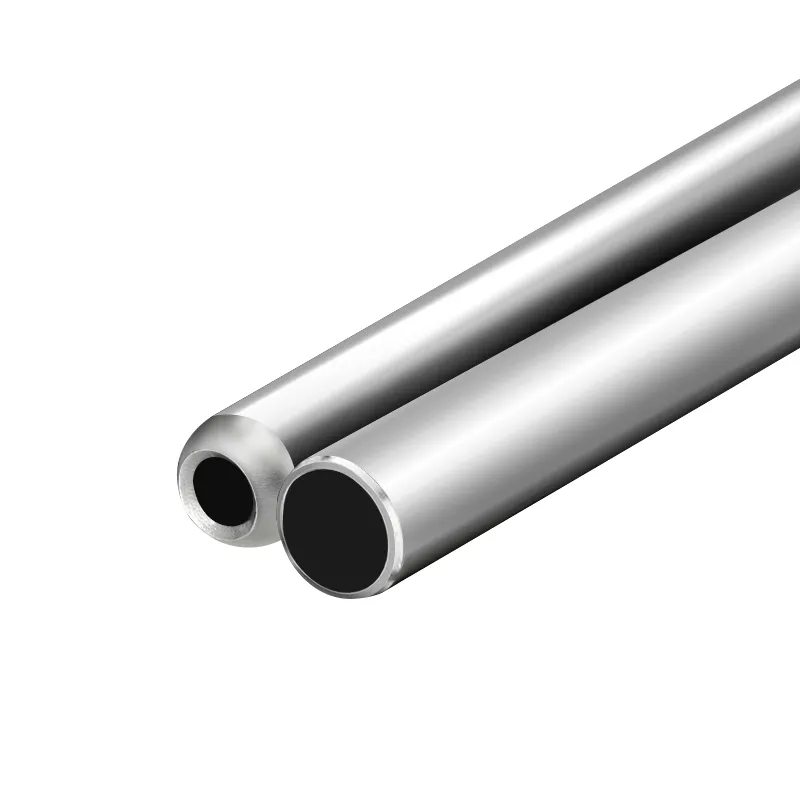

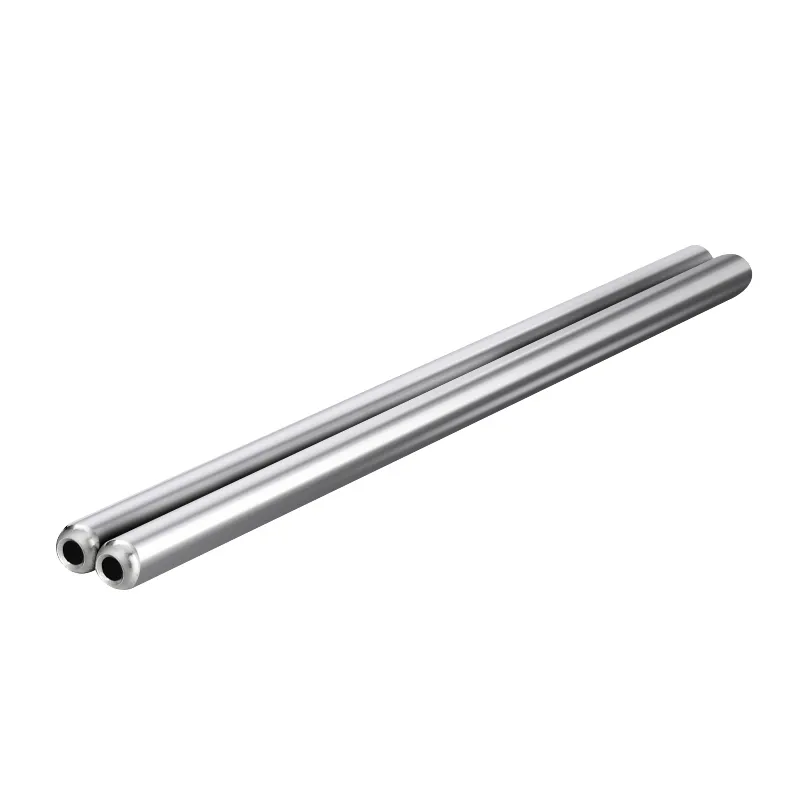

Headrest Shrink Tube is one of the key components used in the headrest adjustment system of car seats. It is usually made of high-strength materials with excellent flexibility and wear resistance. The main function of the headrest shrink tube is to control the height of the headrest by shrinking and adjusting the tube diameter to meet the comfort and support needs of passengers.

article_details

Download As PDF
article_email

Contact Now
  • Specification
  • Our advantage

Product Description

arrow_bom

Headrest Shrink Tube is one of the key components used in the headrest adjustment system of car seats. It is usually made of high-strength materials with excellent flexibility and wear resistance. The main function of the headrest shrink tube is to control the height of the headrest by shrinking and adjusting the tube diameter to meet the comfort and support needs of passengers. Its design and manufacturing need to take into account comfort, safety and durability to ensure stability and reliability during long-term use. The headrest shrink tube plays an important role in the car seat adjustment system, providing passengers with a comfortable driving experience and good support effect.

Product Specifications

arrow_bom
Outside Diameter Thicknesses Material Production Process Post-Processing Special Requirements Testing and Inspection
10mm, 10.9mm, 12mm, 12.7mm, 13mm, 13.95mm, 14mm, 16mm, etc. Corresponding to outer diameters HC340LA, HC420LA, HC500LA, HC340/590DP Welding Neck shrinking, chamfering, or dual-end neck shrinking Removal of internal weld seams, Length tolerance: ±0.3mm, Outer diameter tolerance: +0/-0.06mm, Thickness tolerance: ±0.1mm, Straightness: 0.4/mm Mechanical properties testing, Dimensional tolerance verification, Bend testing

Key Selling Points

arrow_bom
  1. Customizable Dimensions:

Available in various outer diameters and wall thicknesses, with customizable lengths to fit specific applications.

2.High-Quality Materials:

Constructed from premium materials like HC340LA, HC420LA, HC500LA, and HC340/590DP, ensuring durability and reliability.

  1. Precision Manufacturing:

Produced using welding techniques for precise construction, followed by post-processing steps such as neck shrinking and chamfering for enhanced functionality.

  1. Special Requirements Met:

Special requests including the removal of internal weld seams and strict dimensional tolerances ensure superior quality and consistency.

  1. Versatile Applications:

Suitable for various automotive applications, particularly in headrest assembly, due to their tailored design and precise construction.

Share

  1. Exceptional Durability:

Made from high-quality materials and crafted with precision, these tubes offer long-lasting performance and reliability.

  1. Customizable Design:

With customizable dimensions and lengths, our tubes can be tailored to meet specific requirements, ensuring a perfect fit for any application.

  1. Enhanced Functionality:

Post-processing techniques such as neck shrinking and chamfering optimize the functionality of the tubes, providing ease of installation and improved performance.

  1. Consistent Quality:

Special requirements and strict dimensional tolerances guarantee consistent quality across all our products, ensuring reliable performance in every use.

  1. Wide Application Range:

Suitable for a variety of automotive applications, these tubes are versatile and adaptable to different assembly requirements.



Invest in CBIES headrest shrink tubes for superior quality and reliability in your automotive projects.
