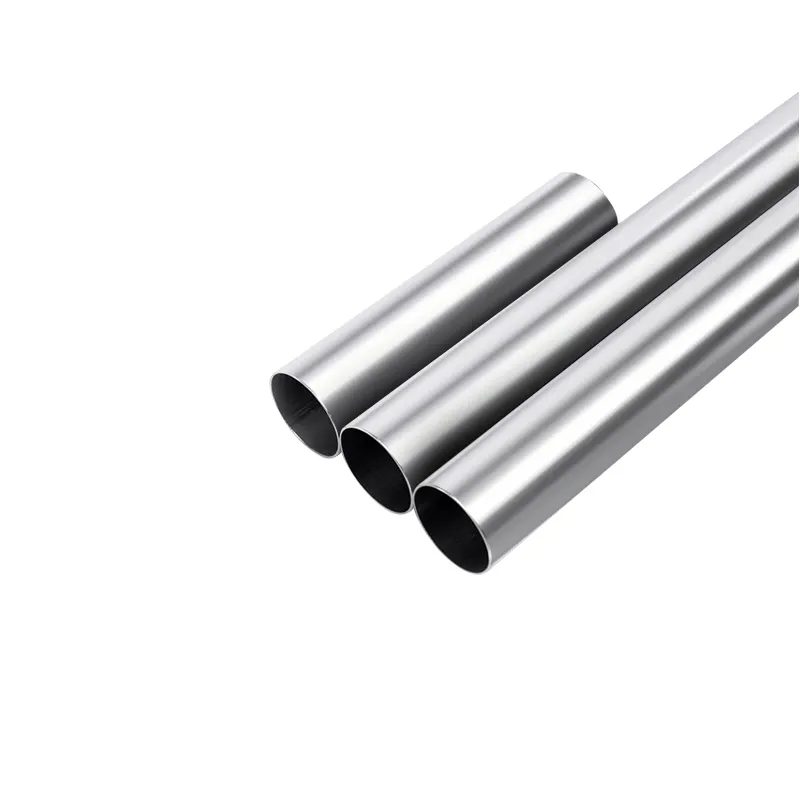

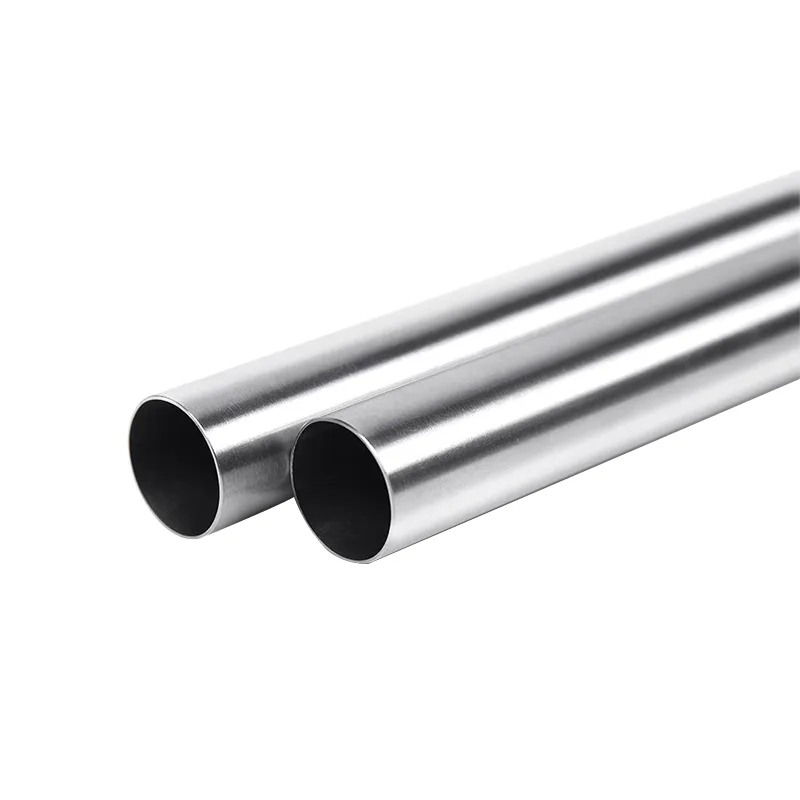

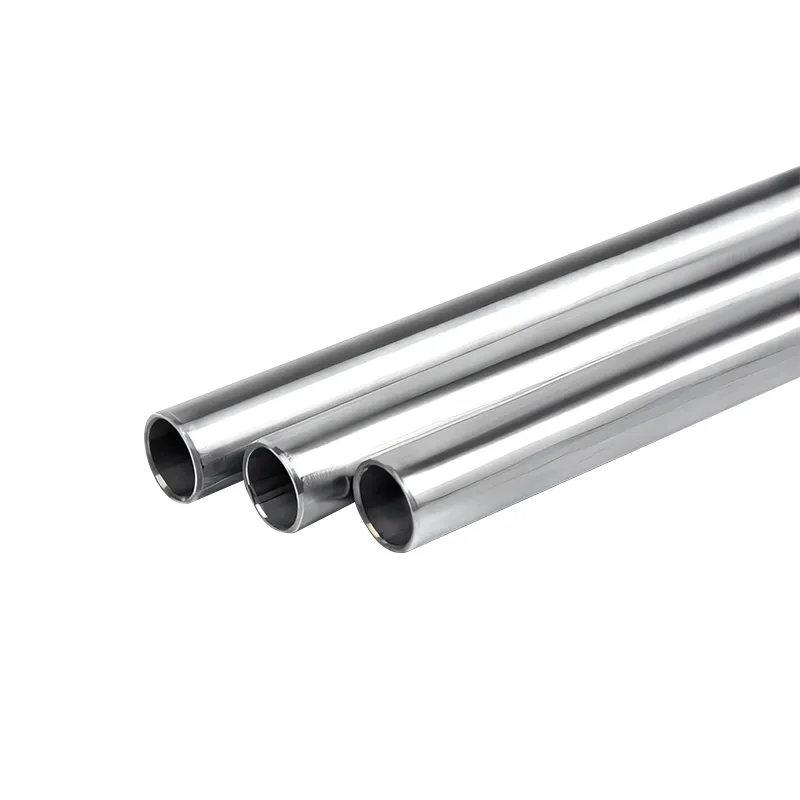

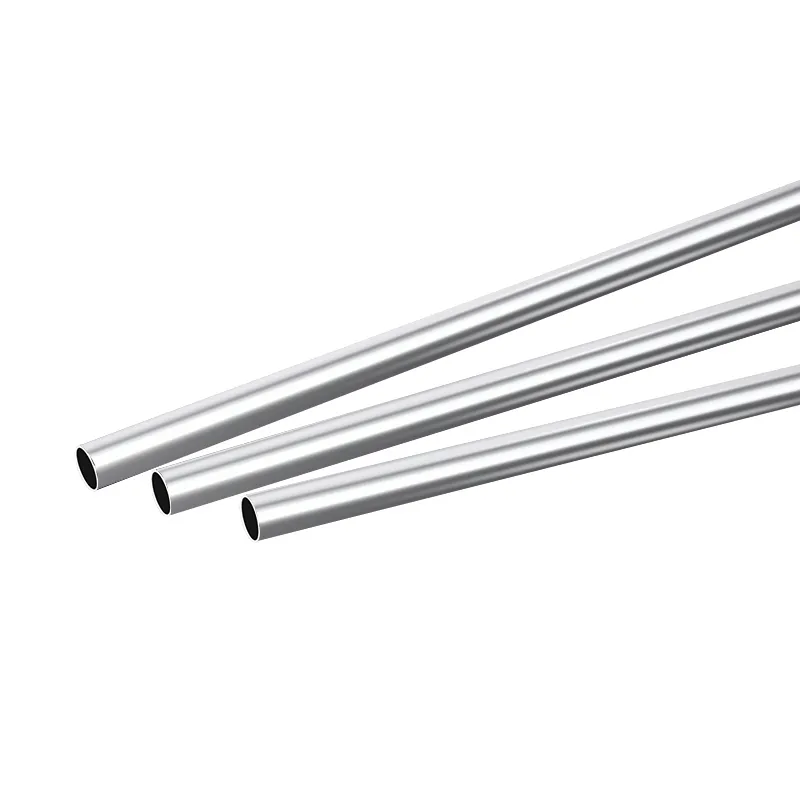

Gas Spring Tube

Gas spring tubes are an important part of the vehicle suspension system, responsible for supporting the vehicle weight and providing a comfortable ride. These springs are usually made of high-strength steel and have excellent elasticity and durability.

article_details

Download As PDF
article_email

Contact Now
  • Specification
  • Our advantage

Product Description

arrow_bom

Gas spring tubes are an important part of the vehicle suspension system, responsible for supporting the vehicle weight and providing a comfortable ride. These springs are usually made of high-strength steel and have excellent elasticity and durability. They adjust the vehicle's suspension height and hardness by compressing and releasing gas to adapt to different road conditions and driving requirements. The precision design and manufacturing of gas springs ensures their stability and reliability during vehicle driving, providing a comfortable and safe riding environment for drivers and passengers.

Product Specifications

arrow_bom
Outside Diameter Thickness Length Material Production Process Special Requirements Internal Diameter Tolerances Testing and Inspection
16mm, 18mm, 22mm, 28mm 0.8mm, 0.9mm, 1.0mm, 1.5mm Customizable SPCC, Q235B Precision rolling, drawing High internal diameter accuracy (Ra < 0.4), straightness (0.5/M), production speed (6m/min, 20-40m/min Lifan) Japan: +/- 0.04mm, Germany: +/- 0.03mm, China: +0-0.32mm

Mechanical Properties, Flattening Test

Flaring Test, Internal Surface Roughness, Internal and External Surface Quality, Internal Diameter Tolerance

Key Selling Points

arrow_bom
  1. Precision Engineering:

Manufactured using advanced precision rolling and drawing techniques to achieve high-quality tubes with excellent internal surface finishes (Ra < 0.4).

  1. High-Quality Materials:

Made from top-grade materials like SPCC and Q235B, ensuring superior strength and durability.

  1. Customizable Lengths:

Lengths can be customized to meet specific application requirements, providing flexibility and convenience.

  1. Strict Tolerances:

Meets rigorous internal diameter tolerances: Japan: +/- 0.04mm, Germany: +/- 0.03mm, China: +0-0.32mm

  1. Comprehensive Testing:

Each tube undergoes thorough testing, including mechanical properties, flattening test, flaring test, internal surface roughness, internal and external surface quality, and internal diameter tolerance.

Share

  1. Superior Performance:

High precision and excellent surface quality ensure reliable and efficient performance in automotive applications.

  1. Enhanced Durability:

Constructed from high-quality materials, these tubes offer long-lasting durability, reducing the need for frequent replacements.

  1. Versatility and Compatibility:

Available in multiple sizes and customizable lengths to suit various automotive needs, including specific standards for different countries.

  1. Cost-Effective Solution:

Durable and reliable, these tubes help reduce maintenance costs and extend the lifespan of automotive components.

  1. Advanced Manufacturing:

Utilizes precision rolling and drawing processes to achieve high-quality, smooth internal surfaces and strict straightness (0.5/M).



Choose CBIES gas spring tubes for a superior, long-lasting solution that meets the rigorous demands of different automotive applications and standards.
