±0.1mm Tolerance for Stable Support: CBIES Shaped Structural Tubing Redefines Fitness Equipment Precision

In the dynamic landscape of fitness equipment manufacturing, structural precision is the bedrock upon which safety, durability, and user experience are built. CBIES, a globally recognized precision steel tube manufacturer, has harnessed cutting-edge technology to craft precision steel tubes that set new industry benchmarks. Specifically, our shaped structural tubing series, engineered with an extraordinary ±0.1mm tolerance, is revolutionizing the structural precision of fitness equipment, becoming the silent guardian for everything from spinning bikes to heavy-duty strength machines.





Advanced Processes of CBIES Precision Steel Tubes

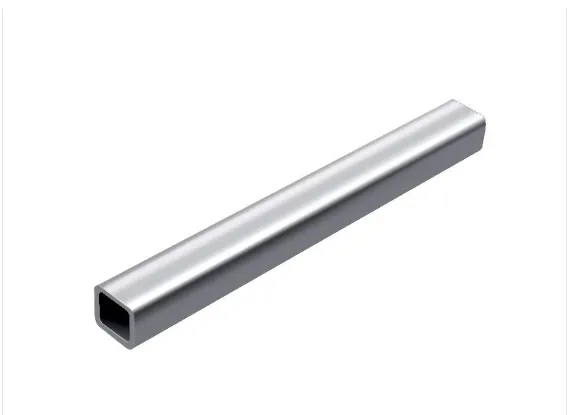

CBIES’ shaped structural tubing, including the widely applied cold-rolled square tube, is a testament to our mastery of cold-forming processes. Through a combination of high-precision dies, computer-controlled machinery, and meticulous quality oversight, we achieve dimensional consistency that defies industry norms:



Cold Drawing Mastery: Starting with hot-rolled billets, we employ tapered dies to draw the steel into seamless preforms, reducing wall thickness tolerance to within ±0.08mm—a critical foundation for subsequent shaping.

Multi-Roll Cold Rolling: For complex geometries like cold rolled square tube, our 12-stage progressive rolling system ensures corner perpendicularity error (angular deviation) stays below 0.15°, while maintaining uniform wall thickness across the entire cross-section.

Stress Relieving Treatment: Post-forming, each tube undergoes low-temperature tempering to eliminate internal stresses, enhancing dimensional stability by 60% under long-term cyclic loading.



Our seamless steel tubes take precision a step further. By integrating piercing, hot-rolling, and cold-drawing without welding, we achieve 40% more uniform wall thickness than conventional welded tubes, eradicating defects that could compromise structural integrity. Every batch is rigorously inspected using ZEISS coordinate measuring machines, ensuring tolerance fluctuations never exceed ±0.05mm, far surpassing international standards.



CBIES Precision Steel Tubes: Where Precision Meets Performance



1. Spinning Bike Frames: Stability Redefined for High-Intensity Workouts



When a rider pedals at 120 RPM, the frame is subjected to over 2,000 N of dynamic force. CBIES’ cold rolled square tube, with its ±0.1mm precision, creates a flawless connection between vertical and horizontal members:



Gapless Assembly: Pipe end gaps (mating gaps) are minimized to <0.2mm—50% tighter than standard industry tolerances—eliminating the metallic rattling caused by micro-movements during sprints.

Torsional Rigidity: The rectangular cross-section, held to ±0.1mm dimensional accuracy, boosts torsional stiffness by 35%. This means no lateral sway during aggressive climbs, providing riders with confidence and control.



2. Strength Equipment Supports: Carrying the Weight of Performance



In squat racks and smith machines, seamless steel tubes serve as the backbone, enduring up to 15,000N of static load. Our ±0.1mm wall thickness uniformity ensures:



Even Stress Distribution: Stress concentration deviations are kept below 5%, preventing localized deformation that could lead to catastrophic failure.

Bending Resistance: By optimizing cross-sectional shapes (such as oval or trapezoidal) through shaped structural tubing, we increase flexural strength by 25%, extending equipment lifespan by years.



3. Aesthetic and Functional Synergy



Precision isn’t just about safety; it’s about design freedom. CBIES tubes offer:



Surface Finish Excellence: With a roughness rating of Ra ≤1.6μm, no secondary polishing is needed before painting, improving coating adhesion by 40% and enhancing corrosion resistance in humid gym environments.

Design Flexibility: Our shaped structural tubing can achieve inner radii as small as 2mm, enabling sleek, space-saving designs, like foldable treadmills with collapsible frames that maintain a gap of just 1mm when folded, balancing portability and sturdiness.



CBIES: More Than a Precision Steel Tube Manufacturer—A Strategic Partner



As a trusted precision steel tube manufacturer, we go beyond delivering high-quality products:



Material Diversity: Our portfolio includes 12 alloy grades, from STKM13C (tensile strength 330MPa) for lightweight home gym equipment to Q345B (680MPa) for commercial-grade machines, ensuring the right material for every load requirement.

Customization Expertise: We offer end-to-end customization, from outer diameters of 10–150mm and wall thicknesses of 1–10mm to complex cross-sections with reinforcing ribs—all tailored to your design specifications.

Global Compliance: Every batch meets three international standards (JIS G3445, EN 10305-1, GB/T 3094) and undergoes 1,000-hour salt spray testing, guaranteeing rust-free performance even in the harshest gym environments.



The Future of Fitness Equipment Starts with Precision Steel Tubes



In an industry crowded with me-too products, CBIES’ precision steel tubes stand out as a mark of excellence. Our ±0.1mm tolerance is not just a technical feat; it’s a promise—a promise that every spin, lift, and stretch is supported by tubing that prioritizes safety, durability, and performance.



For fitness equipment manufacturers, partnering with CBIES means gaining a competitive edge through precision engineering. It means delivering products that not only meet but exceed user expectations, turning casual users into loyal advocates.



Crafted with precision, built for performance—CBIES shaped structural tubing: Redefining what fitness equipment can be.
