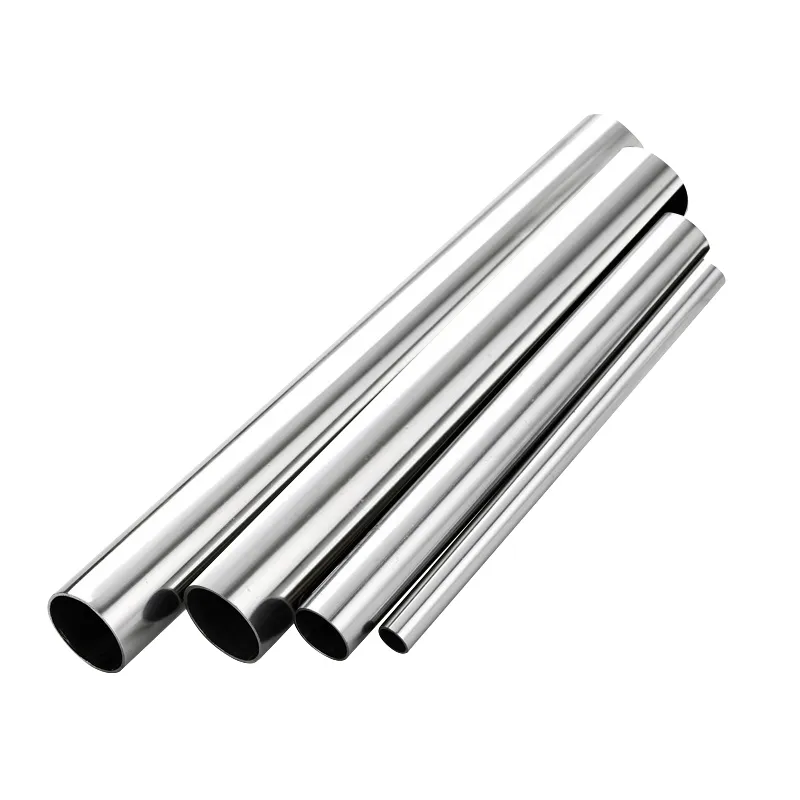

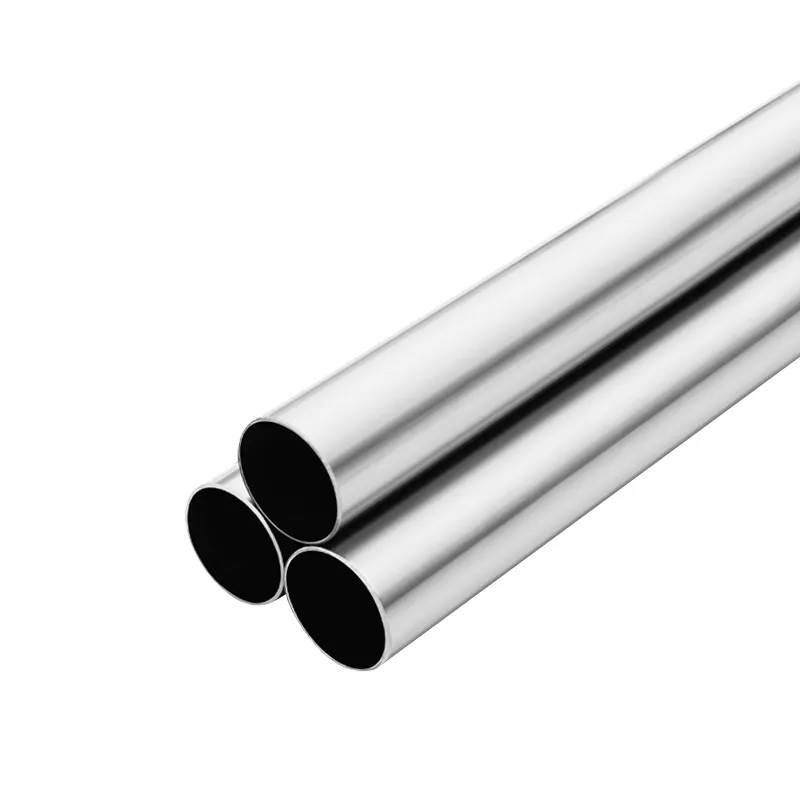

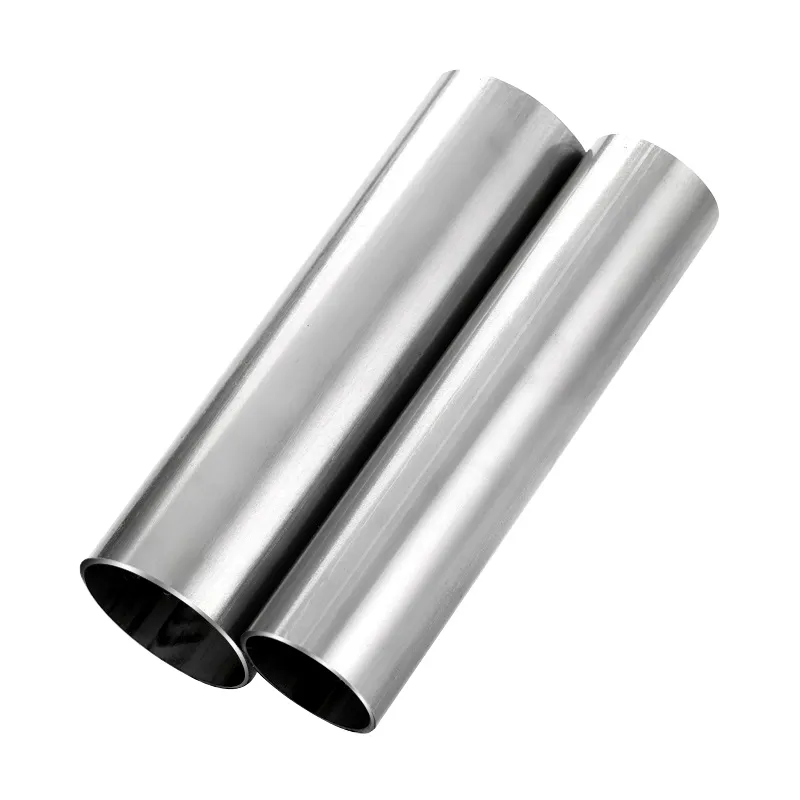

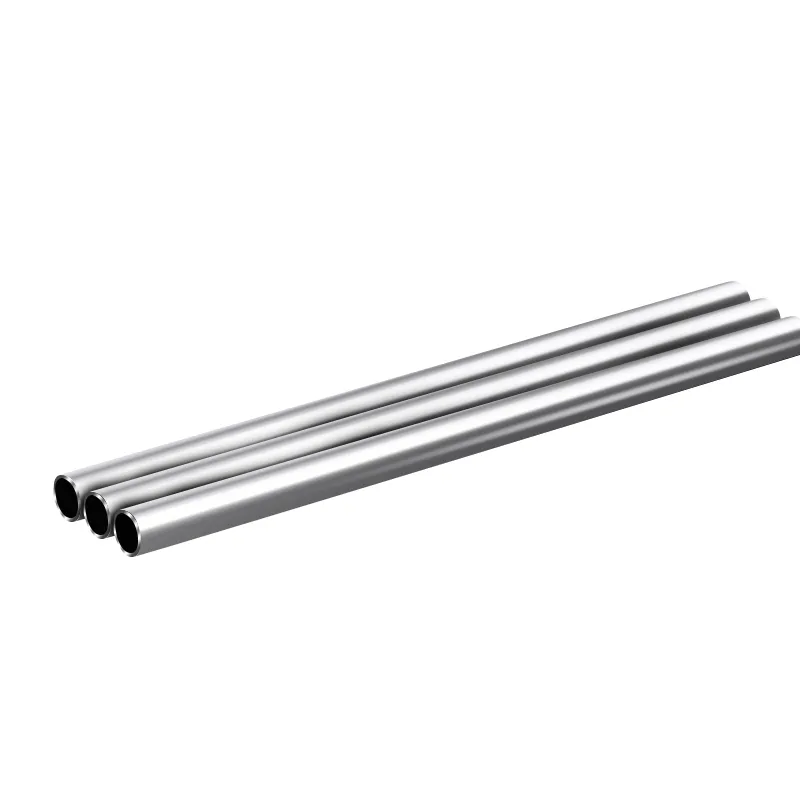

Reserve Tube

The reserve tube is an important component of the vehicle's hydraulic suspension system, used to store hydraulic oil for use in the suspension system. It is usually located next to the pneumatic oil bag in the suspension system, and plays a role in storing, balancing and regulating the pressure of the hydraulic oil.

article_details

Download As PDF
article_email

Contact Now
  • Specification
  • Our advantage

Product Description

arrow_bom

The reserve tube is an important component of the vehicle's hydraulic suspension system, used to store hydraulic oil for use in the suspension system. It is usually located next to the pneumatic oil bag in the suspension system, and plays a role in storing, balancing and regulating the pressure of the hydraulic oil. The reserve tube can stabilize the operation of the suspension system, provide a smooth driving experience, and act as a buffer when the vehicle passes through bumpy roads to reduce body sway. Its design and manufacturing need to meet strict engineering standards to ensure its reliability and durability under various road conditions. As an important component of the suspension system, the reserve tube plays a key role in the suspension performance and ride comfort of the vehicle.

Product Specifications

arrow_bom
Outside Diameter Thickness Material Production Process Post-Processing Special Requirements Application
38mm, 40mm, 42mm, 45mm, 50mm, 51mm, 54mm, 74.5mm 1.0mm - 2.5mm Q235B, ST37-2, Q345B, S355 Drawing, welding, pickling Spray powder，electrophoresis，paint Removal of weld beads for a smooth finish 74.5mm diameter tube specifically designed for 13-meter semi-trailers

Key Selling Points

arrow_bom
  1. High-Quality Materials:

It is constructed from robust materials such as Q235B, ST37-2, Q345B, and S355 for enhanced strength and longevity.

  1. Advanced Manufacturing Processes:

Produced using precision drawing, welding, and pickling techniques to ensure high-quality, reliable tubes.

Special finishing includes the removal of weld beads for a smooth and aesthetically pleasing surface.

  1. Variety of Sizes:

Available in multiple outside diameter (38mm, 40mm, 42mm, 45mm, 50mm, 51mm, 54mm, and 74.5mm) to meet different vehicle specifications and applications.

  1. Superior Post-Processing:

Enhanced with spray powder, electrophoresis, and paint for superior corrosion resistance and extended product life.

  1. Specific Application Design:

The 74.5mm diameter tube is tailored specifically for use in 13-meter semi-trailers, ensuring perfect compatibility and optimal performance.

Share

  1. Durability and Longevity:

High-quality materials combined with advanced manufacturing processes result in tubes that can withstand harsh conditions and maintain performance over time.

  1. Versatility and Compatibility:

A wide range of sizes and wall thicknesses ensure suitability for various vehicles and applications, including specific designs for semi-trailers.

  1. Enhanced Protection:

Effective shielding of suspension components from environmental damage, thereby extending their operational lifespan and reducing maintenance needs.

  1. Cost-Effective Solution:

Long-lasting protection translates to lower maintenance costs and fewer replacements, offering significant savings.

  1. Superior Finish and Functionality:

Removal of weld beads and high-quality surface treatments improve the tube's appearance and ensure a smooth, functional fit.



Opt for CBIES reserve tubes to secure a high-quality, long-lasting solution for your vehicle's suspension system.
