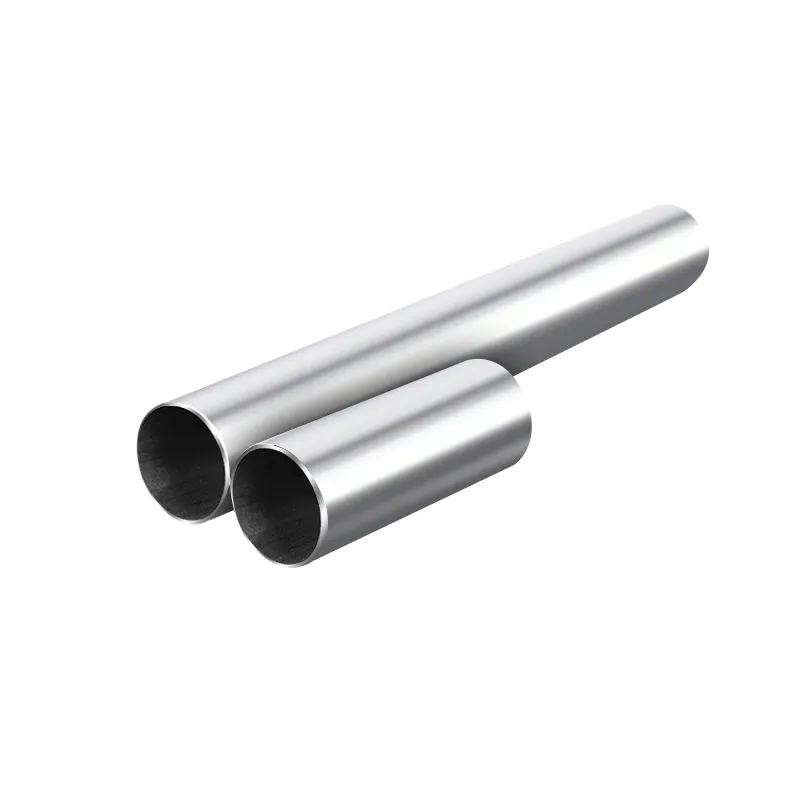

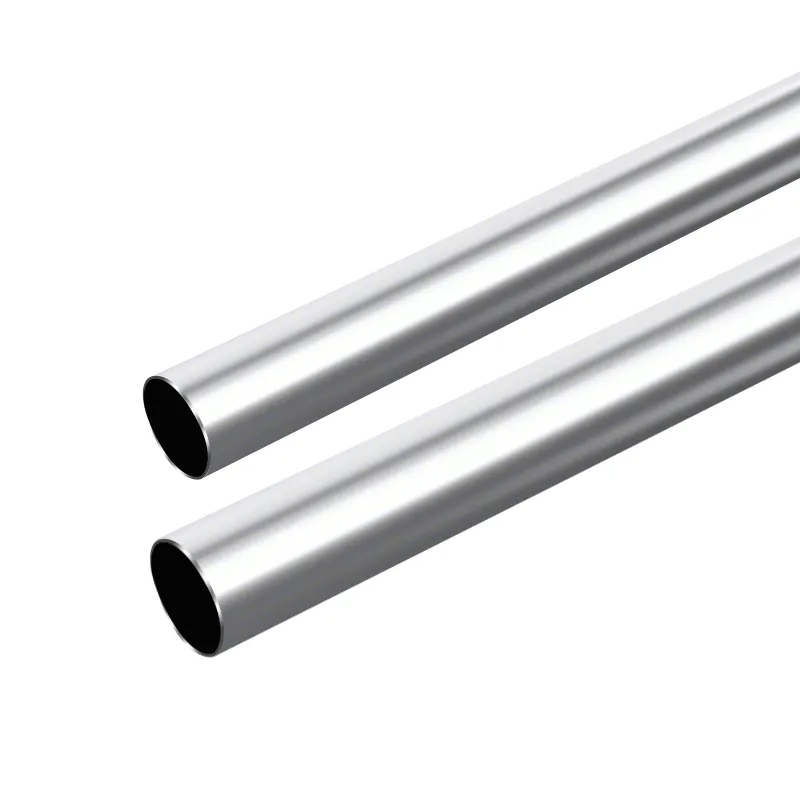

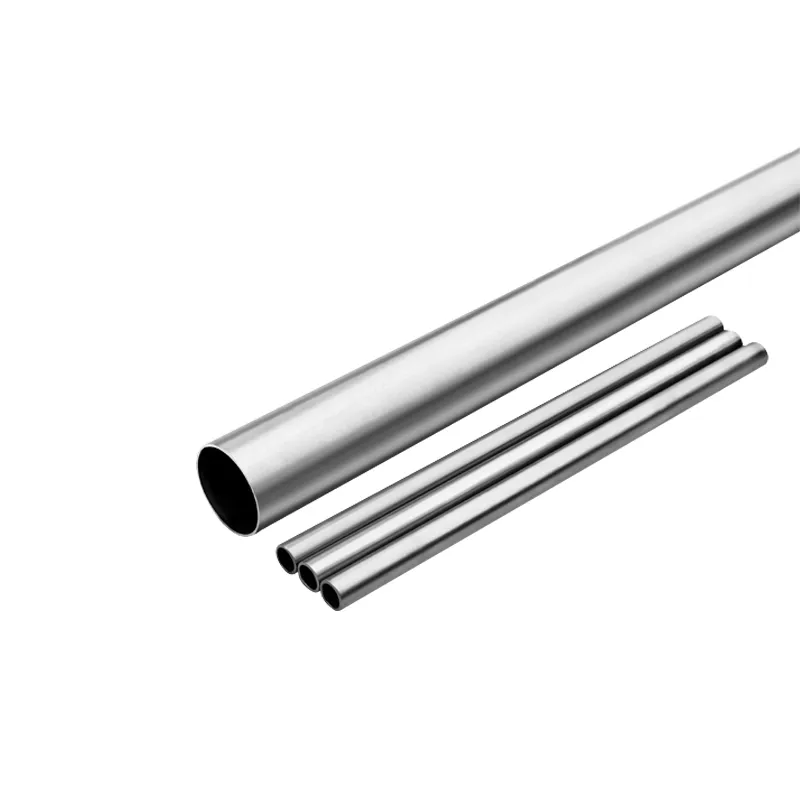

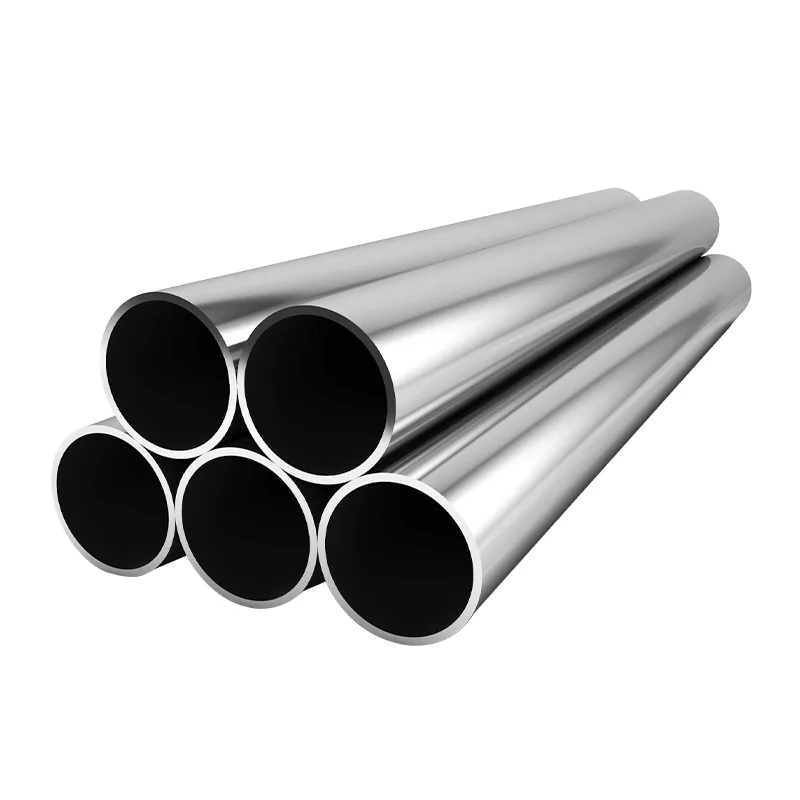

Cylinder

The cylinder tube is a crucial element in the internal combustion engine, serving as the essential vessel where the combustion process takes place. It provides the space for the engine's piston to move back and forth. When fuel ignites within the cylinder tube, it produces high-temperature and high-pressure gases that exert force on the piston. This force causes the piston to move, facilitating the conversion of thermal energy from combustion into mechanical energy, which powers the engine. The efficiency and performance of an internal combustion engine heavily rely on the design and integrity of the cylinder tube, making it a fundamental component in the overall operation of the engine.

article_details

Download As PDF
article_email

Contact Now
  • Specification
  • Our advantage

Product Description

arrow_bom

Cylinder is an important component in the internal combustion engine, which carries the combustion process of the engine. It is the container in which the engine piston reciprocates. The high-temperature and high-pressure gas pressure generated by the combustion of fuel pushes the piston, thereby converting it into mechanical energy. Its design and manufacturing need to meet strict standards and process requirements to ensure the stability, efficiency and durability of the engine. The working cylinder is one of the key factors in engine performance, which directly affects the power output and fuel efficiency of the vehicle.

Product Specifications

arrow_bom
Outside Diameter Thickness Material Production Process Post-Processing Special Requirements Application Tolerances Testing and Inspection
22mm, 27mm, 27.2mm, 27.4mm, 30mm, 30.2mm, 30.4mm, 32mm, 32.2mm, 32.4mm, 34mm, 34.2mm, 34.4mm, 38.6mm, 54mm 1.0mm, 1.1mm, 1.2mm, 1.4mm Q235B, ST37-2, Q345B, S355 Cold-drawn steel tube Chamfering, port machining, cyclone treatment High internal diameter accuracy (Ra < 0.4), straightness (0.5/M), speed (6m/min, 20-40m/min Lifan) Japan: Internal diameter tolerance: +/- 0.04mm，Germany: Internal diameter tolerance: +/- 0.03mm，China: Internal diameter tolerance: +0-0.32mm Mechanical Properties, Flattening Test, Flaring Test, Internal Surface Roughness, Internal and External, Surface Quality, Outer Diameter Tolerance, Inner Diameter, Tolerance, Straightness, End Requirements, Plug Gauge Testing

Key Selling Points

arrow_bom
  1. High-Quality Materials:

It is constructed from robust materials like Q235B, ST37-2, Q345B, and S355 for enhanced strength and durability.

  1. Precision Manufacturing:

Produced using cold-drawn steel tube processes to ensure high-quality, precise cylinders.

Special requirements include high internal diameter accuracy (Ra < 0.4), straightness (0.5/M), and speed (6m/min, 20-40m/min Lifan).

  1. Wide Range of Sizes:

Available in various outside diameters (22mm, 27mm, 27.2mm, 27.4mm, 30mm, 30.2mm, 30.4mm, 32mm, 32.2mm, 32.4mm, 34mm, 34.2mm, 34.4mm, 38.6mm, 54mm) and thicknesses (1.0mm, 1.1mm, 1.2mm, 1.4mm) to meet different specifications.

  1. Advanced Post-Processing:

Enhanced with chamfering, port machining, and cyclone treatment to meet stringent automotive requirements.

  1. Specific Application Design:

Tailored to meet the high internal diameter tolerances required by Japanese (+/-0.04mm), German (+/-0.03mm), and Chinese (+0-0.32mm) automotive standards.

arrow_bom

The Advantages of CBIES Cylinder Tubes in OEM Car Parts



In the automotive industry, the quality and performance of components play a critical role in ensuring optimal vehicle functionality. One essential component that often goes unnoticed is the cylinder tube, particularly in the context of shock absorber tubes. The CBIES cylinder tube, specifically designed for OEM car parts, offers a variety of advantages that enhance vehicle performance and reliability.

First and foremost, CBIES cylinder tubes are manufactured using high-quality materials that ensure durability and longevity. This is crucial for shock absorber tubes, which must withstand significant forces during operation. With better resistance to wear and tear, CBIES cylinder tubes can extend the life of the shock absorbers, leading to fewer replacements and lower overall maintenance costs for vehicle owners.

Furthermore, CBIES prioritizes precision engineering in its cylinder tubes. This accuracy ensures a perfect fit within the vehicle’s suspension system, critical for maintaining stability and driving comfort. A precision-engineered shock absorber tube is essential for optimal response during varying driving conditions, contributing to a smoother ride and enhanced safety.

Another advantage of CBIES cylinder tubes is their compatibility with a wide range of OEM car parts. This versatility makes them an excellent choice for manufacturers and mechanics alike, as they can integrate seamlessly into various vehicle models. The ability to provide high-quality components for diverse applications positions CBIES as a reliable partner for automotive professionals.

Moreover, the lightweight nature of CBIES cylinder tubes contributes to overall vehicle efficiency. Reducing the mass of suspension components like shock absorber tubes can significantly improve fuel economy and handling performance, making it an attractive solution for modern automotive designs focusing on efficiency without compromising safety or functionality.

In conclusion, the advantages of CBIES cylinder tubes, particularly for shock absorber tubes and OEM car parts, position them as a preferred choice in the automotive industry. Their durability, precision engineering, compatibility, and lightweight design make them indispensable for enhancing vehicle performance and reliability. Whether you are a manufacturer or vehicle owner, investing in high-quality cylinder tubes can lead to significant benefits on the road.

arrow_bom

CBIES Cylinder Tube FAQs



What is the CBIES cylinder tube made of?


The CBIES cylinder tube is constructed from high-quality, durable precision steel tubes designed to withstand various applications. Its precise manufacturing process ensures exceptional performance and longevity, making it an ideal choice for both industrial and personal projects.



What are the dimensions of the CBIES cylinder tube?


The CBIES cylinder tube is available in multiple sizes to cater to diverse needs. For precise measurements, please refer to the product specifications section on our listing. This ensures you select the perfect size for your intended application.



Can the CBIES cylinder tube be used for outdoor applications?


Yes, the CBIES cylinder tube is engineered to be weather-resistant and suitable for outdoor use. Its durable construction prevents deterioration from exposure to the elements, making it a reliable choice for various outdoor projects.



What is the weight capacity of the CBIES cylinder tube?


The CBIES cylinder tube boasts an impressive weight capacity, making it suitable for a range of applications. For exact weight limits and recommendations based on usage, please check the product specifications provided in the listing. This ensures your project meets safety and performance standards.



Is the CBIES cylinder tube customizable?


Yes, we offer customization options for the CBIES cylinder tube to meet specific project requirements. Please reach out directly through the seller's contact information on our listing to discuss your needs. Our team is ready to assist you in creating precisely what you require.

Share

  1. Durability and Longevity:

High-quality materials and precision manufacturing processes ensure cylinders that withstand harsh conditions and maintain performance over time.

  1. Versatility and Compatibility:

A wide range of sizes and wall thicknesses ensure suitability for various automotive applications, including specific designs for Japanese, German, and Chinese vehicles.

  1. Enhanced Performance:

High internal surface quality (Ra < 0.4) and strict straightness requirements (0.5/M) ensure optimal performance and reliability.

  1. Cost-Effective Solution:

Durable construction and advanced treatments translate to lower maintenance costs and fewer replacements, offering significant savings.

  1. Superior Finish and Functionality:

Meticulous post-processing including chamfering, port machining, and cyclone treatment ensures a smooth, functional fit and superior performance.



Our cylinders are meticulously crafted to provide outstanding support and protection for automotive systems. Available in a variety of sizes and constructed from premium materials, these cylinders offer a reliable and durable solution that enhances vehicle performance and extends longevity. Custom-designed options ensure precise compatibility and optimal functionality across different automotive standards. Choose our cylinders for a superior, long-lasting, and dependable solution tailored to your automotive needs.



Choose CBIES cylinders for a robust, enduring solution that meets all your automotive requirements.
